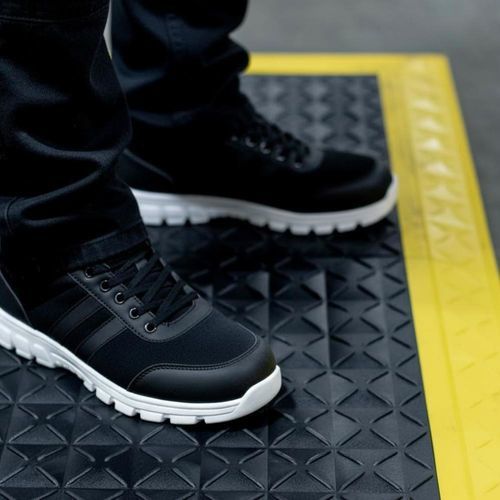

PVC floor tile H1 series

polyvinyl chloriderecycled plasticanti-slip

Overview
Heavy-duty modular anti-fatigue floor tiles engineered for demanding industrial environments. Features a compression dome surface with patented Compression Flex Technology™ for ergonomic support and a 64-point support structure for effective load distribution and cable management.

Performance
Cushioning: Medium
Pressure distribution: Ultimate
Bounce-back: Ultimate
Top surface grip: High
Floor grip: High

Recommended Use

• Harsh dry environments with occasional exposure to industrial fluids

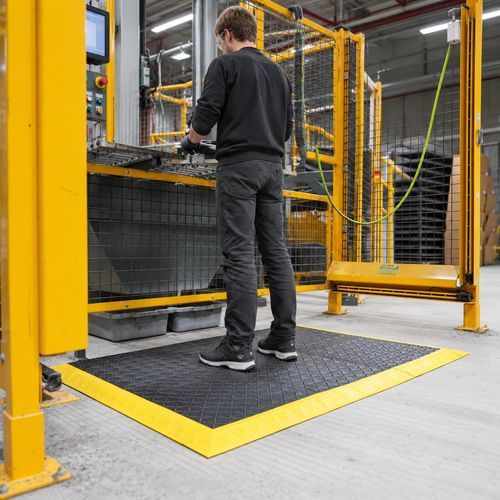

• Industrial production lines and assembly cells
• Welding and technical workstations
• Areas with cables, hoses or raised gratings

Ergonomic Guidance

• Designed for prolonged standing up to full shifts
• Suitable for all user sizes

Available Configurations

• Modular tiles 46 × 46 cm, extendable and reconfigurable
• Yellow and black safety ramps available
• Fully connectable with other H-Series products
• Optional protective underlay for installation over metal grating

Origin
Made in the UK

Technical specifications

• Material: 100% Recycled PVC
• Fire rating: Cfl – s2
• Antislip rating: R10
• Max load capacity: 1 t/m² point load | recommended max. rolling load: 300 kg
• Moisture resistance: High
• Oil resistance: High
• Chemical resistance: High
• Recyclable: Yes
• REACH: Yes
• Phthalate-free: Yes
