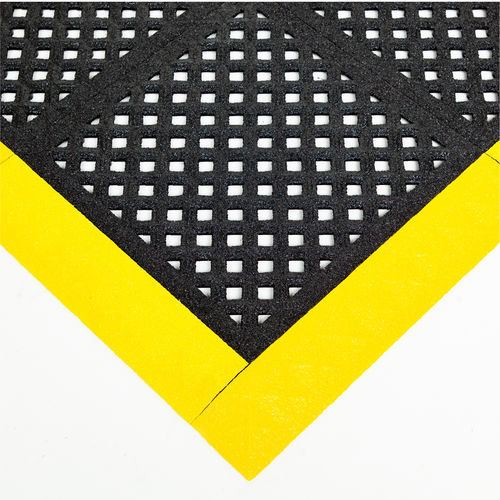

PVC floor tile H4 series

recycled plasticaluminum oxideanti-slip

Overview
Heavy-duty Ergo Advantage modular tile system designed for wet and oily industrial environments. Configurable in any layout with integrated anti-slip aluminum oxide grit on a recycled PVC base.

Key features

• Aluminum oxide bonded to 100% recycled PVC surface for increased heat, oil and chemical resistance.
• Open drainage structure allows rapid liquid flow and improves airflow below the surface.

Performance characteristics

• Cushioning: Medium
• Pressure distribution: Ultimate
• Bounce-back: Ultimate
• Top surface grip: High
• Floor grip: High

Recommended use

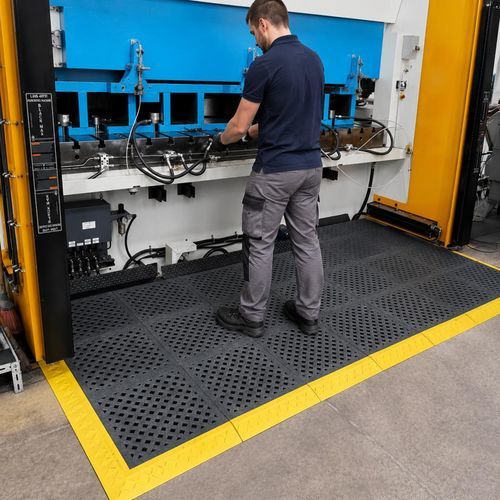

• Anti-slip support in welding areas and heavy-duty work zones with prolonged exposure to oil and lubricants, with integrated drainage.
• Wet and oily industrial production areas
• Zones with continuous fluid exposure
• Welding workstations and fabrication lines
• High-risk standing zones requiring slip resistance

Ergonomic guidance

• Designed for prolonged standing up to full shifts to reduce fatigue.
• Suitable for users of all sizes and workstation layouts.

Available configurations

• 46 cm × 46 cm modular tiles, extendable and reconfigurable to fit custom layouts.
• Yellow and black safety ramps available for tapered edges.
• Fully connectable with other H-Series modules.
• Optional protective underlay accessory for installation over metal grating.

Datasheets available

• English
• French
• German
• Dutch
• Italian
• Spanish
• Portuguese

Installation & maintenance

• Prepare the surface: floor must be clean, dry and free of dust, grease and residues.
• Place the mat: connect tiles to form the required area; ensure ramps are fitted where needed.
• Routine cleaning: sweep or hose to remove dust, debris and light residues.
• Deep cleaning: use a pH-neutral floor cleaner and non-abrasive tools; rinse thoroughly. Avoid harsh chemicals and abrasive pads that can clog the anti-slip texture or reduce traction.

Technical specifications

• Material: 100% recycled PVC with aluminum oxide grit surface
• Fire rating: Cfl – s2
• Antislip rating: R13
• Max load capacity: 1 t/m² point load | recommended max. rolling load: 300 kg
• Moisture resistance: High
• Oil resistance: High
• Chemical resistance: High
• Recyclable: Yes
• REACH: Yes
• Phthalate-free: Yes
