PVC floor tile H3 series

recycled plasticaluminum oxideanti-slip

Overview

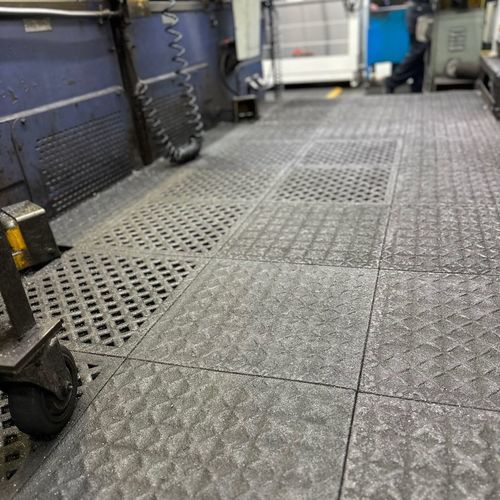

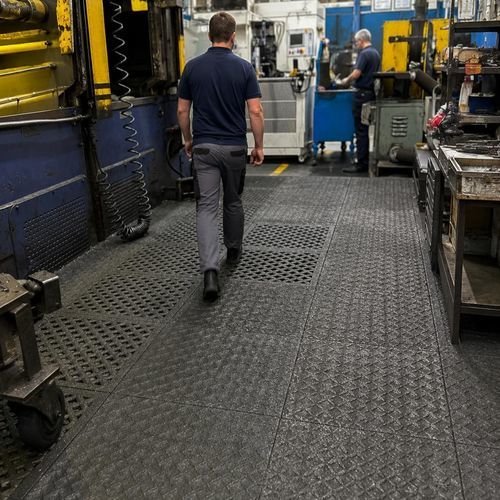

Heavy-duty Ergo Advantage modular tile system engineered for environments where maximum grip is required, configurable in any layout. Same construction as H1 Series with integrated anti-slip surface.

• Aluminum oxide bonded to PVC surface for enhanced heat and chemical resistance.
• 64-point support structure for optimal load distribution and cable management.

Performance

• Cushioning: Medium
• Pressure distribution: Ultimate
• Bounce-back: Ultimate
• Top surface grip: High
• Floor grip: High

Recommended Use

• Very slippery industrial environments
• Oily or contaminated workstations
• Welding workstations
• High-risk standing zones

Ergonomic Guidance

• For prolonged standing up to full shifts
• Suitable for all user sizes

Available Configurations

• 46 cm × 46 cm modular tiles, extendable and reconfigurable
• Yellow and black safety ramps available
• Fully connectable with other H-Series
• Optional protective underlay accessory available for installation over metal grating

Origin
Made in the UK

Technical specifications

• Material: 100% Recycled PVC with Aluminum Oxide Grit Surface
• Fire Rating: Cfl – s2
• Antislip Rating: R13
• Max Load Capacity: 1 t/m² point load | recommended max. rolling load: 300 kg
• Moisture Resistance: High
• Oil Resistance: High
• Chemical Resistance: High
• Recyclable: Yes
• REACH: Yes
• Phthalate-Free: Yes
