PVC floor tile H2 series

anti-slipoil-resistantindustrial

Overview

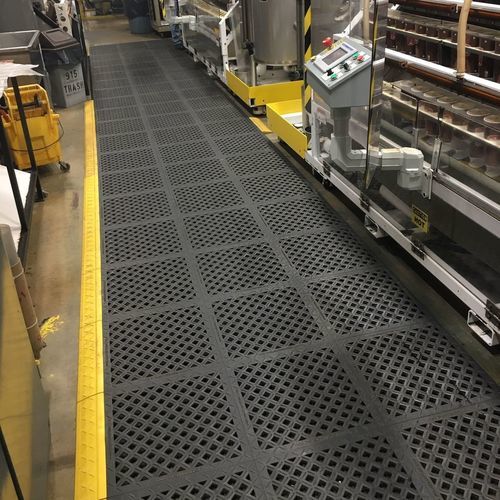

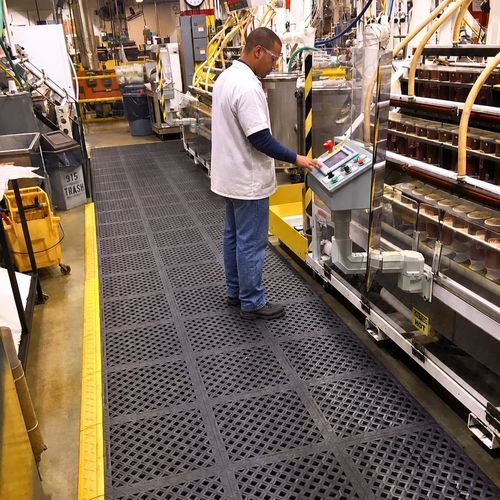

Ergo Advantage modular tile system designed for wet and oily industrial environments, configurable in any layout and suitable for prolonged standing.

• Compression dome surface for ergonomic support.
• Open drainage design allows liquids to pass through easily and improves airflow.

Performance characteristics

• Cushioning: High
• Pressure Distribution: Medium
• Bounce-Back: Medium
• Top Surface Grip: Standard
• Floor Grip: Standard

Recommended Use

• Harsh wet and oily environments with regular exposure to industrial fluids.
• Wet or oily production areas and process lines.
• Assembly and manufacturing cells requiring drainage and anti-slip surfaces.
• Technical zones with cables, hoses or uneven flooring.

Ergonomic Guidance

• Suitable for prolonged standing up to full shifts.
• Appropriate for operators of all sizes.

Available Configurations

• 46 cm × 46 cm modular tiles, extendable and reconfigurable to required coverage.
• Yellow and black safety ramps available for transitions.
• Fully connectable with other H-Series products.
• Optional protective underlay accessory available for installation over metal grating.

Datasheets
Datasheets available in: English, French, German, Dutch, Italian, Spanish, Portuguese.

Installation & Maintenance

• Prepare the surface: floor must be clean, dry and free of dust or grease.
• Place the tiles: connect modules to form the desired area.
• Routine cleaning: sweep or hose down to remove dust, debris and residues.
• Deep cleaning: use a pH-neutral cleaner and non-abrasive tools; rinse thoroughly to remove residues. Avoid harsh chemicals and abrasive pads that can fill the anti-slip texture or reduce traction.

Technical specifications

• Material: 100% Recycled PVC
• Fire Rating: Cfl – s2
• Antislip Rating: R10
• Max Load Capacity: 1 t/m² point load | recommended max. rolling load: 300 kg
• Moisture Resistance: High
• Oil Resistance: High
• Chemical Resistance: High
• Recyclable: Yes
• REACH: Yes
• Phthalate-Free: Yes
