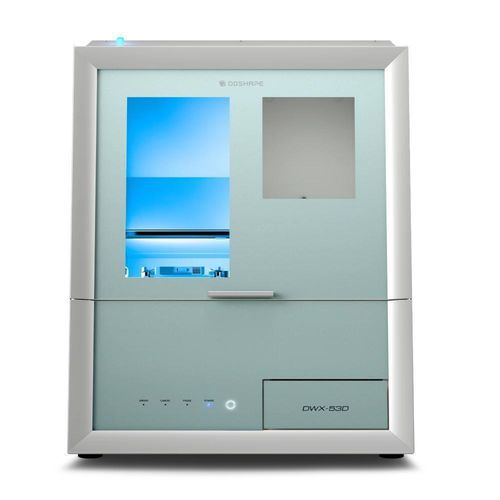

5-axis CNC milling machine AnyCAM 53D

swiveling-spindlefor compositesfor hard and brittle materials

Description
The AnyCAM 53D – powered by Roland DGSHAPE DWX‑53D technology and supported by REITEL service. This 5‑axis dry milling machine is designed for dental laboratories and dental technicians to mill zirconia, PMMA, wax, PEEK, CoCr and composite materials within open digital workflows. The system is compatible with leading CAD/CAM software such as Exocad and 3Shape.

Key Benefits

• Based on Roland DGSHAPE DWX‑53D technology and offered under the REITEL brand
• 5‑axis simultaneous dry milling for precise dental restorations
• Automatic calibration and an integrated cleaning system
• Open CAD/CAM architecture for full workflow integration (Exocad, 3Shape, MILLBOX ECO)
• Compact footprint suitable for dental labs of varying sizes

REITEL Complete Solution

• MILLBOX ECO CAM software preconfigured for DGSHAPE systems
• Preconfigured PC and system setup
• On‑site installation and user training by REITEL dental technicians

Technical features

• Axes: 5‑axis simultaneous (B‑axis: ±35°)
• Materials: Zirconia, PMMA, Wax, Composite Resins, PEEK, PEKK, Gypsum, Fiber‑Reinforced Resin, CoCr sintered metal, Polycarbonate
• Tool changer: 15 positions
• Spindle speed: up to 60,000 RPM
• Calibration: automatic high‑precision calibration
• Cleaning system: removes up to 95% of dust
• Software: open CAD/CAM architecture compatible with major dental software
• Usage: dry milling for dental applications

Characteristics / technical specifications

• Model: AnyCAM 53D (based on Roland DGSHAPE DWX‑53D)
• Type: 5‑axis dry dental milling machine
• Axes: 5‑axis simultaneous, B‑axis ±35°
• Materials processed: Zirconia, PMMA, Wax, Composite Resins, PEEK, PEKK, Gypsum, Fiber‑Reinforced Resin, CoCr sintered metal, Polycarbonate
• Tool changer capacity: 15 positions
• Maximum spindle speed: 60,000 RPM
• Calibration: automatic calibration system
• Cleaning: automatic cleaning system removing up to 95% of dust
• Software compatibility: open CAD/CAM architecture (compatible with Exocad, 3Shape, MILLBOX ECO)
• Included as set: MILLBOX ECO CAM software, preconfigured PC and setup, on‑site training and installation by REITEL
• Intended usage: dry milling for dental laboratories
