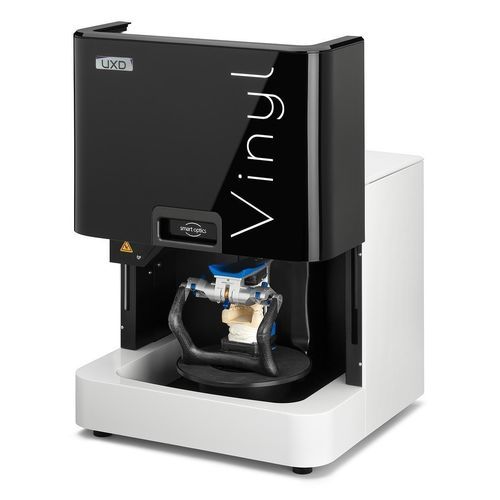

3D scanner AnySCAN VINYL UXD

measurementfor 3D printinginspection

Description
The AnySCAN VINYL UXD, introduced to the Vinyl series in 2022, pairs two high-resolution cameras with an advanced 3D sensor to deliver flexible, high-quality data capture. Users can select between four operating modes to define camera count and resolution, enabling either full high-resolution scans or reduced datasets for faster workflows.

UX module and user interaction
The UX module integrates two additional cameras and a projector to enhance the user experience. Icons are projected onto the system plate and can be activated by hand gestures, allowing workflow selection and scan start with minimal PC interaction.

Scanning workflow and AI alignment
Scan sequences are fully configurable (upper jaw, lower jaw, articulator or other objects). Interior-space monitoring uses AI-controlled Z-axis positioning to automatically align objects in height, ensuring optimal scan results.

Technical features

• State-of-the-art 3D sensor unit
• UX module for gesture control and assistant projections
• Enlarged articulator system plate
• AI-controlled Z-axis
• Rapid motor control
• HR and LR modes
• Selective camera mode
• Power supply: 100 – 240 VAC, 50/60 Hz
• Measurement time complete jaw: Scanning 12 s; Matching 10 s; Total 22 s
• Measurement time single tooth: Scanning 25 s; Matching 6 s; Total 31 s
• Measurement time 3-unit bridge: Scanning 40 s; Matching 15 s; Total 55 s
• Connections: 1x USB 3.0, 1x power
• Size (W x H x D): 430 / 455 / 420 mm
• Cameras: 4
• Camera pixels: 2 x 3.2 MP, 2 x 1.0 MP
• Measuring field 1 (x / y / z): 80 / 60 / 82 mm
• Measuring field 2 (x / y / z): 88 / 63 / 82 mm
• Accuracy (ISO 12836): 4 µm
• Weight: 25 kg
• Order-No.: 58440000

Technical specifications

• Model: AnySCAN VINYL UXD
• Series: Vinyl
• 3D sensor unit: advanced, state-of-the-art
• Number of cameras: 4 (2 x 3.2 MP, 2 x 1.0 MP)
• Measuring field camera 1 (x/y/z): 80 / 60 / 82 mm
• Measuring field camera 2 (x/y/z): 88 / 63 / 82 mm
• Accuracy (ISO 12836): 4 µm
• Measurement times: complete jaw 12/10/22 s; single tooth 25/6/31 s; 3-unit bridge 40/15/55 s
• Power supply: 100–240 VAC, 50/60 Hz
• Connections: 1x USB 3.0, 1x power
• Dimensions (W×H×D): 430 × 455 × 420 mm
• Weight: 25 kg
• Key features: AI-controlled Z-axis, interior-space monitoring, UX module for gesture control, selective camera mode, HR and LR modes
• Order number: 58440000
