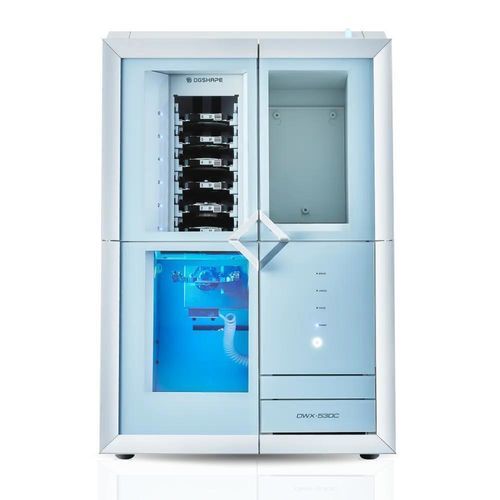

5-axis CNC milling machine AnyCAM 53DC

with swiveling spindlefor ceramicsfor thermoplastics

Description
AnyCAM 53DC – Roland DGSHAPE DWX-53DC automation delivered and supported by REITEL. The AnyCAM 53DC is a fully automated 5-axis dental milling system designed for high-volume laboratory production. It integrates a 6-position disc changer, a 15-tool magazine and DGSHAPE CLOUD connectivity for remote monitoring and job tracking.

Key Features

• Based on the Roland DGSHAPE DWX-53DC platform, supplied by REITEL
• Automated disc and tool changing for continuous production
• DGSHAPE CLOUD integration for remote access and job monitoring
• Compatible with zirconia, PMMA, CoCr, wax, PEEK, PEKK and composite materials
• Configured and supported by REITEL technical team

All-in-One Solution

• MILLBOX ECO software optimized for DGSHAPE
• Preconfigured PC included and ready to operate
• On-site training, configuration and installation
• After-sales service and technical support from REITEL

Technical features (summary)

• Axes: 5-axis simultaneous (B-axis: ±35°)
• Materials: Zirconia, PMMA, Wax, Composite Resins, PEEK, PEKK, Gypsum, Fiber-Reinforced Resin, CoCr sintered metal, Polycarbonate
• Tool Changer: 15 positions
• Spindle Speed: Up to 60,000 RPM
• Calibration: Automatic high-precision calibration with temperature sensor
• Cleaning System: Removes up to 95% of dust
• Software: Open CAD/CAM system compatible with dental software
• Operation: Dry milling

Accessories

• DUSTY ZIRKON (compatible accessory)

Technical specifications

• Model: AnyCAM 53DC (based on Roland DGSHAPE DWX-53DC)
• Automation: 6-position disc changer and 15-tool magazine
• Axes: 5-axis simultaneous, B-axis ±35°
• Supported materials: Zirconia, PMMA, Wax, Composite Resins, PEEK, PEKK, Gypsum, Fiber-reinforced resin, CoCr sintered metal, Polycarbonate
• Tool magazine capacity: 15 positions
• Spindle speed: up to 60,000 RPM
• Calibration: Automatic high-precision calibration with temperature sensor
• Cleaning: Dust removal system, removes up to 95% of dust
• Software included: MILLBOX ECO; open CAD/CAM compatibility
• PC: Included and ready to operate
• Connectivity: DGSHAPE CLOUD integration for remote monitoring and job tracking
• Operation mode: Dry milling
