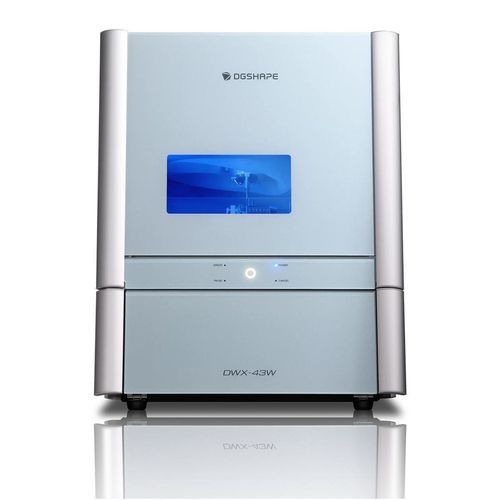

4-axis CNC milling machine AnyCAM 43W

verticalfor glassfor composites

Product description
AnyCAM 43W – REITEL milling solution for dental wet milling. Based on DGSHAPE DWX-43W 4-axis technology, customized and fully supported by REITEL. Designed for precision wet machining in dental laboratories with integrated service, training and support options.

Materials & compatibility
Suitable for wet milling of glass ceramics (e.g. lithium disilicate), composite resin, PMMA and pre-milled titanium abutments. Integrates into digital dental workflows and is compatible with Exocad, 3Shape and other STL-based CAM software.

Your advantages at a glance

• Wet milling with four axes: XYZ + A-rotation ±360° for precise wet machining of high-quality dental materials
• Six-position tool changer (ATC): Automatic handling of up to six burs for uninterrupted production
• Filterless coolant system: Reduces maintenance effort with automatic cleaning every 12 hours
• Open system architecture: Freely combinable with scanners and STL-based CAM software
• Intuitive operation & monitoring: VPanel with LAN connectivity; optional DGSHAPE CLOUD for remote monitoring

Applications
High-aesthetic wet milling for dental laboratories, dental technicians and digital adopters requiring reliable support and consistent milling results.

Technical features

• High-speed precision machining of glass ceramics (e.g. lithium disilicate) and composite materials
• Automatic tool changer
• ATC with 6 positions
• Open system for integration into CAD/CAM workflows (Exocad, 3Shape)
• Power supply: 230 V / 50–60 Hz
• Power consumption: 190 W
• Interface: USB 2.0
• Dimensions (W × H × D): 48.2 × 60 × 56 cm
• Loadable workpiece size: ≤ 4 × 2 × 2 cm
• Weight: 61 kg
• Operating noise: ≤ 70 dB (≤ 48 dB standby)
• Operating speed: 6 – 1,800 mm/min
• Spindle speed: 15,000 – 60,000 rpm
• Tool magazine: 6 positions
• Rotational axis movement angle: ±360° (A-axis)
• Mountable tools: ø 3 mm, special tools for wet processing
• Compressor: ≥ 0.3 MPa, ≥ 39 l/min (oil-free, with dryer)

Characteristics / technical specifications

• Model: AnyCAM 43W (based on DGSHAPE DWX-43W)
• Axes: 4-axis (XYZ + A rotation ±360°)
• Tool changer: 6 positions (ATC)
• Coolant system: Filterless, automatic cleaning every 12 hours
• Power supply: 230 V / 50–60 Hz
• Power consumption: 190 W
• Interface: USB 2.0
• Dimensions (W × H × D): 48.2 × 60 × 56 cm
• Loadable workpiece size: ≤ 4 × 2 × 2 cm
• Weight: 61 kg
• Noise: ≤ 70 dB (≤ 48 dB standby)
• Speed range: 6 – 1,800 mm/min
• Spindle speed: 15,000 – 60,000 rpm
• Compatible materials: glass ceramics (lithium disilicate), composite resin, PMMA, pre-milled titanium abutments
• Compressor: ≥ 0.3 MPa, ≥ 39 l/min (oil-free, with dryer)
