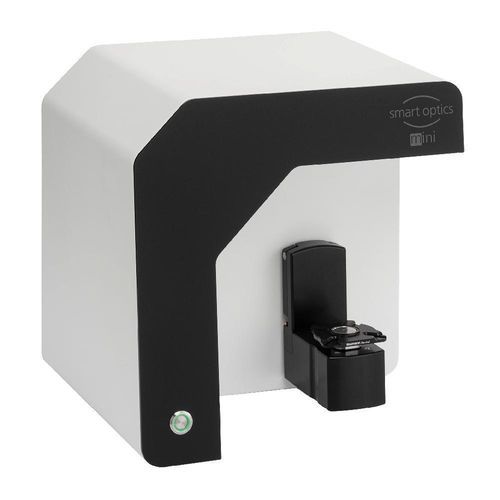

3D scanner AnySCAN mini

opticalstructured lightwhite light

Description
The AnySCAN mini is a fully automatic 3D desktop dental scanner with compact dimensions and a modern design. Manufactured by smart optics in Germany, it is adapted to both newcomers to dental CAD/CAM and laboratories that require efficient production of crowns and bridges.

Applications and software compatibility

• Designed for crown and bridge workflows (full-anatomic, anatomically reduced, minimum thickness)
• Includes time-saving secondDie module and monochrome texture scan for single-colour model markings
• Compatible with dental Scan scanning software; supports optional modules (multiDie, multiCase, Triple Tray® impression scanning)
• Auto-articulation feature can compensate when space for articulators is limited
• Compatible with exocad® DentalCAD and other open CAD applications

Universal / industrial use
The mini offers a universal mode in dental Scan that enables scanning of objects up to the measuring field size for non-dental or industrial applications. Final 3D models are exported in open formats (PLY, STL) for further processing in CAD systems.

Download

• ANYSCAN mini flyer (PDF)

Technical specifications

• Number of cameras: 1
• Camera resolution: 1.6 MP
• Number of projectors: 1
• Accuracy (according to ISO 12836): 6 µm
• Output formats: PLY, STL
• Light source: White light LED
• Measuring technology: Stripe light triangulation
• Measurement field (X × Y × Z): 80 × 60 × 85 mm
• Dimensions (W × H × D): 337 × 347 × 322 mm
• Weight: 9.5 kg
• Connections: 1 × USB, 1 × Power
• Power supply: 100 - 240 VAC, 50/60 Hz
• Complete jaw: 1 camera, LR mode — Scanning: 14 s, Matching: 15 s, Total: 29 s
• Single tooth: 1 camera, LR mode — Scanning: 30 s, Matching: 12 s, Total: 42 s
• 3-unit bridge: 1 camera, LR mode — Scanning: 38 s, Matching: 18 s, Total: 56 s
• Order-No.: 58411000 (without peripherals)
