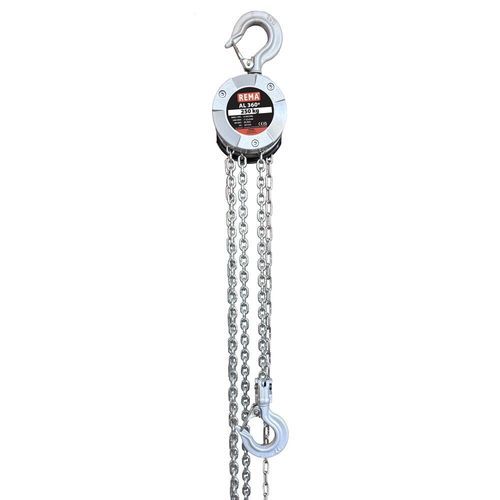

Hand chain hoist AL360

compactlightweightlow headroom

Product details
The REMA lightweight aluminium hand chain hoist offers maximum flexibility and safety. Thanks to its 360° rotatable design, you can lift and position loads from virtually any angle, even in confined spaces. Its low weight reduces physical strain on the user, which directly contributes to better ergonomics. Together with its well-thought-out, safe design, you can work quickly, accurately and comfortably.

Features

• Lightweight: Aluminium housing
• 360° rotatable: Full rotation hand chain
• Ergonomic: Operation from almost any angle
• Load pressure brake: Holds loads at any desired height
• Double pawl system
• Compact: Compact design with low installation height
• High-quality European load chain: Complies with EN818-7
• Available in capacities 250 and 500 kg

Standard delivery

• 3 m lifting height (max. distance between upper and lower hooks)
• 2.5 m operating height

Option

• Available in any other hoisting and operational heights

Marking

• CE-marked, UKCA-marked

Availability (warehouses)
Warehouse
MAGREMA
Availability
On request

Caractéristiques / spécifications techniques

• Model series: AL360
• Housing material: Aluminium (lightweight)
• Rotation: 360° full rotation hand chain
• Operation: Ergonomic operation from almost any angle
• Brake: Load pressure brake
• Safety: Double pawl system
• Design: Compact with low installation height
• Load chain standard: EN818-7
• Available working loads (WLL): 250 kg and 500 kg
• Number of falls: 1 (for all standard variants)
• Standard lifting heights available: 3 m (standard); optional 4–10 m
• Construction height (Hmin): 240 mm (250 kg models); 270 mm (500 kg models)
• Load chain dimensions: 250 kg → 3,2 x 9,0 mm; 500 kg → 4,3 x 12,0 mm
• Hand chain dimensions: 250 kg → 2,5 x 14,0 mm; 500 kg → 3,5 x 20,0 mm
• Hand force (typical): 14.98 kg (250 kg models); 18.7 kg (500 kg models)
• Weight ranges: 250 kg models ≈ 2.8–5.6 kg (depending on lifting height); 500 kg models ≈ 4.8–10.3 kg (depending on lifting height)
• Part code examples: 0030001-3 (AL360/250KG/3M), 0030003-3 (AL360/500KG/3M)
• EAN examples: 8717365071805 (0030001-3), 8717365076503 (0030003-3)
• Typical lead time (per variant): 7 days
