Hand chain hoist S20P

trolley

Product overview

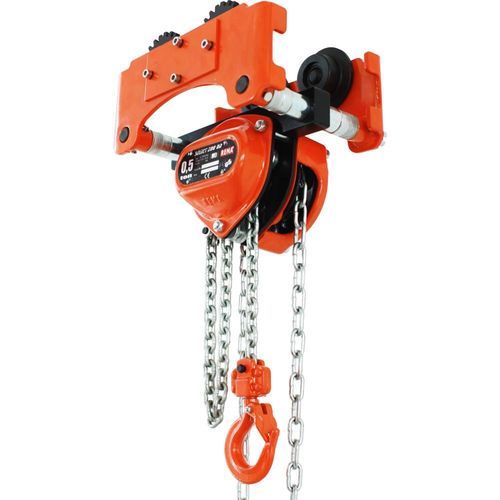

The trolley chain hoist Rema S20P is a combined chain hoist supplied with an integral trolley, overload protection, maintenance-free bearings and TÜV/GS approval. Supplied exclusively in combination with the hand chain hoist Rema Select 200 OD. Includes trolley.

Features

• This trolley is only available combined with the Select 200 OD hand chain hoist.
• Suitable for profiles with straight and tapered flanges.
• Bearings with maintenance-free ball bearings.
• Wheel break supports for additional safety.

Technical information for the Select 200 OD hoist

• Overload protection to prevent dangerous overloads during lifting.
• Low operating force at full load thanks to bearing-mounted shafts and gear reduction.
• Increased operational safety due to a double pawl locking system.
• Load-pressure brake that holds loads at any height.
• Load chain wheel (chain nut) made of precision steel alloy.
• Load hook and hook suspension with safety latch; both hooks deform under overload instead of breaking abruptly.
• Electro-galvanized load chain (grade 8 according to EN 818-7) and electro-galvanized hand chain.
• Robust steel sheet housing with orange powder coating.
• S-200 models are TÜV/GS tested and CE marked.

Standard delivery

• 3 m lift (standard variant).
• 2.5 m operating chain (standard).
• Includes trolley.

Options

• Custom lift and operating chain lengths available on request.

Certificates & standards

• CE marking
• Standards: EN 13157, EN 818-7

Variants (excerpt as table: PartCode | WLL (t) | Lift (m) | Weight (kg) | EAN | Model | Max flange width (mm)
PartCode | WLL | Lift | Weight | EAN | Model | MaxFlangeWidth
0930001-3 | 0,5 | 3 m | 18 kg | 8717365117183 | S20P/200OD/0.5T/3M | 50-203
0930001-4 | 0,5 | 4 m | 20 kg | 8717365117190 | S20P/200OD/0.5T/4M | 50-203
0930001-5 | 0,5 | 5 m | 21,5 kg | 8717365117206 | S20P/200OD/0.5T/5M | 50-203
0930001-6 | 0,5 | 6 m | 23 kg | 8717365117213 | S20P/200OD/0.5T/6M | 50-203
0930001-7 | 0,5 | 7 m | 25 kg | 8717365117220 | S20P/200OD/0.5T/7M | 50-203
0930001-8 | 0,5 | 8 m | 26 kg | 8717365117237 | S20P/200OD/0.5T/8M | 50-203
0930001-9 | 0,5 | 9 m | 28 kg | 8717365117244 | S20P/200OD/0.5T/9M | 50-203
0930001-10 | 0,5 | 10 m | 30 kg | 8717365117251 | S20P/200OD/0.5T/10M | 50-203
0930003-3 | 1,0 | 3 m | 28 kg | 8717365117268 | S20P/200OD/1T/3M | 64-305
0930003-4 | 1,0 | 4 m | 30 kg | 8717365117275 | S20P/200OD/1T/4M | 64-305
0930003-5 | 1,0 | 5 m | 32 kg | 8717365117282 | S20P/200OD/1T/5M | 64-305
0930003-6 | 1,0 | 6 m | 34 kg | 8717365117299 | S20P/200OD/1T/6M | 64-305
0930003-7 | 1,0 | 7 m | 36 kg | 8717365117305 | S20P/200OD/1T/7M | 64-305
0930003-8 | 1,0 | 8 m | 38 kg | 8717365117312 | S20P/200OD/1T/8M | 64-305
0930003-9 | 1,0 | 9 m | 40 kg | 8717365117329 | S20P/200OD/1T/9M | 64-305
0930003-10 | 1,0 | 10 m | 41 kg | 8717365117336 | S20P/200OD/1T/10M | 64-305
0930005-3 | 1,5 | 3 m | 40 kg | 8717365117343 | S20P/200OD/1.5T/3M | 88-305
0930005-4 | 1,5 | 4 m | 42 kg | 8717365117350 | S20P/200OD/1.5T/4M | 88-305
0930005-5 | 1,5 | 5 m | 44 kg | 8717365117367 | S20P/200OD/1.5T/5M | 88-305
0930005-6 | 1,5 | 6 m | 46 kg | 8717365117374 | S20P/200OD/1.5T/6M | 88-305
0930005-7 | 1,5 | 7 m | 48 kg | 8717365117381 | S20P/200OD/1.5T/7M | 88-305
0930005-8 | 1,5 | 8 m | 50 kg | 8717365117398 | S20P/200OD/1.5T/8M | 88-305
0930005-9 | 1,5 | 9 m | 52 kg | 8717365117404 | S20P/200OD/1.5T/9M | 88-305
0930005-10 | 1,5 | 10 m | 55,5 kg | 8717365117411 | S20P/200OD/1.5T/10M | 88-305
0930007-3 | 2,0 | 3 m | 44,5 kg | 8717365117428 | S20P/200OD/2T/3M | 88-305
0930007-4 | 2,0 | 4 m | 47 kg | 8717365117435 | S20P/200OD/2T/4M | 88-305
0930007-5 | 2,0 | 5 m | 49 kg | 8717365117442 | S20P/200OD/2T/5M | 88-305
0930007-6 | 2,0 | 6 m | 52 kg | 8717365117459 | S20P/200OD/2T/6M | 88-305
0930007-7 | 2,0 | 7 m | 54 kg | 8717365117466 | S20P/200OD/2T/7M | 88-305
0930007-8 | 2,0 | 8 m | 56,5 kg | 8717365117473 | S20P/200OD/2T/8M | 88-305
0930007-9 | 2,0 | 9 m | 59 kg | 8717365117480 | S20P/200OD/2T/9M | 88-305
0930007-10 | 2,0 | 10 m | 61 kg | 8717365117497 | S20P/200OD/2T/10M | 88-305
0930009-3 | 3,0 | 3 m | 66 kg | 8717365117503 | S20P/200OD/3T/3M | 100-305
0930009-4 | 3,0 | 4 m | 70 kg | 8717365117510 | S20P/200OD/3T/4M | 100-305
0930009-5 | 3,0 | 5 m | 73 kg | 8717365117527 | S20P/200OD/3T/5M | 100-305
0930009-6 | 3,0 | 6 m | 76,5 kg | 8717365117534 | S20P/200OD/3T/6M | 100-305
0930009-7 | 3,0 | 7 m | 80 kg | 8717365117541 | S20P/200OD/3T/7M | 100-305
0930009-8 | 3,0 | 8 m | 83 kg | 8717365117558 | S20P/200OD/3T/8M | 100-305
0930009-9 | 3,0 | 9 m | 86,5 kg | 8717365117565 | S20P/200OD/3T/9M | 100-305
0930009-10 | 3,0 | 10 m | 90 kg | 8717365117572 | S20P/200OD/3T/10M | 100-305
0930011-3 | 5,0 | 3 m | 108 kg | 8717365117589 | S20P/200OD/5T/3M | 114-305
0930011-4 | 5,0 | 4 m | 112,5 kg | 8717365117596 | S20P/200OD/5T/4M | 114-305
0930011-5 | 5,0 | 5 m | 117 kg | 8717365117602 | S20P/200OD/5T/5M | 114-305
0930011-6 | 5,0 | 6 m | 121,5 kg | 8717365117619 | S20P/200OD/5T/6M | 114-305
0930011-7 | 5,0 | 7 m | 126 kg | 8717365117626 | S20P/200OD/5T/7M | 114-305
0930011-8 | 5,0 | 8 m | 130,5 kg | 8717365117633 | S20P/200OD/5T/8M | 114-305
0930011-9 | 5,0 | 9 m | 135 kg | 8717365117640 | S20P/200OD/5T/9M | 114-305
0930011-10 | 5,0 | 10 m | 140 kg | 8717365117657 | S20P/200OD/5T/10M | 114-305

Note
The above variants list is an excerpt of available model variants (different capacities, lift heights, weights and EAN/GTIN). Details on dimensions A, B, Cmin, Hmin, M, S, Z, wheel diameter, load chain and hand chain as well as minimum turning radius are variant-specific and provided in the technical variant information.
