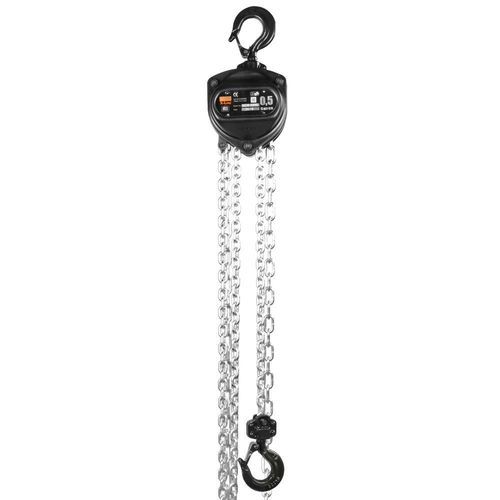

Manual chain hoist Rema® X-Line BLACKLINE

handfor the entertainment industryspur pinion

Product overview
The REMA X-LINE BLACKLINE is a robust, ergonomic spur-gear hand chain hoist, particularly suited for theatre and stage applications.

Features

• Low operating force at full load thanks to supported shafts and gearing.
• Increased operational safety through a double pawl locking system.
• Load-pressure brake that holds loads at any height.
• Load chain wheel (chain nut) made from precision steel alloy.
• Load hook and suspension hook with safety latch.
• Both hooks deform under overload rather than fracture.
• Galvanized load chain (grade 8 according to EN 818-7).
• Galvanized hand chain.
• Sturdy steel sheet housing with orange powder coating.

Standard delivery

• 3 m lift (maximum distance between upper and lower hook).
• 2.5 m operating/hand chain length.

Options

• Custom lift and operating heights available.
• Chain container for lifts up to 10 m.

Marking / Standards

• Marking: according to standard, CE marked.
• Standards: EN 13157, EN 818-7.

Variants

• Item No.: 0171000-10 — Capacity: 250 kg — Lift: 10 m — Number of falls: 1 — Model: X-LINE/250KG/BLACK-10M — Load chain: 4.0 x 12 mm — Hand chain: 5.0 x 23.7 mm — Headroom: 280 mm — Weight: 6 kg — Operating force: 23.5 kg — EAN: 8717365149962.
• Item No.: 0171000-15 — Capacity: 250 kg — Lift: 15 m — Number of falls: 1 — Model: X-LINE/250KG/BLACK-15M — Load chain: 4.0 x 12 mm — Hand chain: 5.0 x 23.7 mm — Headroom: 280 mm — Weight: 6 kg — Operating force: 23.5 kg — EAN: 8717365149979.
• Item No.: 0171001-10 — Capacity: 500 kg — Lift: 10 m — Number of falls: 2 — Model: X-LINE/500KG/BLACK-10M — Load chain: 5.0 x 15 mm — Hand chain: 5.0 x 23.7 mm — Headroom: 280 mm — Weight: 9 kg — Operating force: 24.9 kg — EAN: 8717365149986.
• Item No.: 0171001-15 — Capacity: 500 kg — Lift: 15 m — Number of falls: 2 — Model: X-LINE/500KG/BLACK-15M — Load chain: 5.0 x 15 mm — Hand chain: 5.0 x 23.7 mm — Headroom: 280 mm — Weight: 9 kg — Operating force: 24.9 kg — EAN: 8717365149993.

Characteristics / Specifications

• Available capacities: 250 kg and 500 kg.
• Available lifts: 10 m, 15 m (custom lengths and up to 10 m chain container available).
• Number of falls: 1 (250 kg), 2 (500 kg).
• Materials: galvanized load and hand chains, load chain wheel made from precision steel alloy, steel sheet housing with powder coating.
• Standards / marking: CE, EN 13157, EN 818-7.
• Product type: spur-gear hand chain hoist, suitable for theatre & stage applications.
