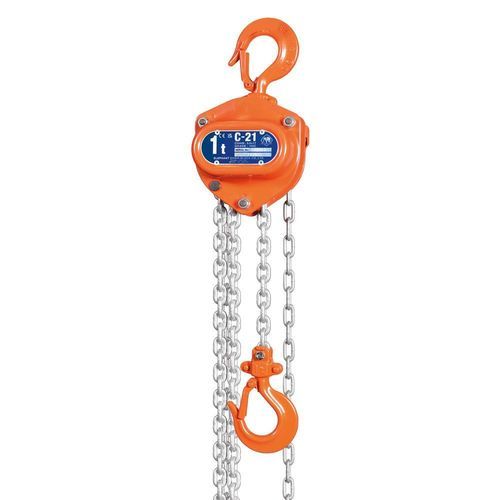

Manual chain hoist ELEPHANT C21

compactfor materials handlinglightweight

Overview
The REMA Elephant C-21 manual chain hoist is a compact, industrial lifting solution designed for the safe handling of heavy loads. It is suitable for suspension on hooks or trolleys and is available in multiple rated capacities and lift heights. The unit is supplied with a galvanised load chain, forged hooks with safety latches and a load-retaining brake system.

Main features

• Lightweight and compact design for routine lifting tasks.
• Galvanised load chain, grade 10 according to EN 818-7.
• Durable brake discs and load-pressure brake that holds loads at any height.
• Forged suspension and load hooks with safety latches; hooks deform progressively in overload instead of fracturing.
• Patented chain guide for smooth chain travel.
• Double-sprung pawl (double locking spring) for increased safety.
• Galvanised hand chain for operator durability.

Standard delivery

• Lift height: 3 m (standard).
• Operating/hand chain drop: 2.5 m (standard).

Options
Available in several lift heights, operating heights and rated capacities depending on the selected variant.

Technical attributes

• Material: Steel construction.
• Brand: REMA
• Marking: According to standards, CE marked.
• Operating temperature range: -20°C to +130°C.
• Finish: Powder coating.
• Standards: EN 13157, EN 818-7 (Grade 10).
• Safety factor: 4:1 (manufacturer information may indicate ≥4.8 for specific variants).

Variants (examples)
PartCode | EAN | WLL (tonne) | Lift height (m) | Weight (kg) | Lead time (days)
0021001-3 | 8717365259814 | 0,5 | 3 | 6,1 | 7
0021001-4 | 8717365264436 | 0,5 | 4 | 7,2 | 7
0021001-5 | 8717365264443 | 0,5 | 5 | 8,4 | 3
0021001-6 | 8717365264450 | 0,5 | 6 | 9,6 | 3
0021001-7 | 8717365090134 | 0,5 | 7 | 12 | 7
0021001-8 | 8717365090141 | 0,5 | 8 | 13,8 | 7

Remark
The Elephant C-21 series is offered in multiple capacity and lift-height variants; weights and lead times vary by reference. Technical drawings and variant-specific plans are available on the product page.
