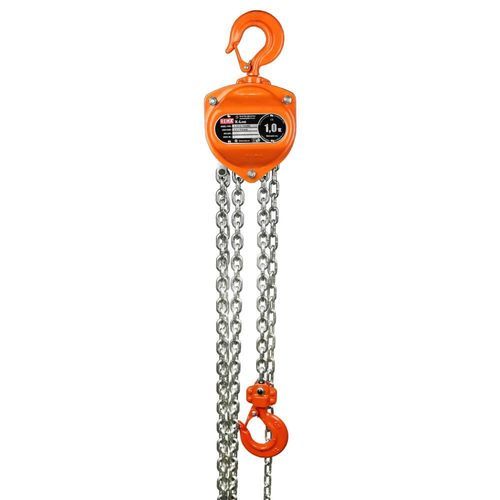

Manual chain hoist Rema® X-Line

for materials handling1

Short description
The Rema® X-Line manual chain hoists are a solution for demanding lifting tasks. Low operating force and an enhanced safety system enable efficient and safe use. Asbestos-free friction discs and a wear-resistant load chain increase usability. Controlled deformation in case of overload and orange powder coating provide additional safety and visibility. Available with a standard lift from 3 m and 2.5 m operating height.

Features

• Low operating force at full load thanks to supported shafts and gearing.
• Improved operational safety due to a double pawl locking system.
• Load pressure brake holds loads at any height.
• Load chain wheel (chain nut) made of precision steel alloy.
• Load hook and hook suspension with safety latch.
• Both hooks deform under overload rather than breaking abruptly.
• Electro-galvanized load chain (grade 8 according to EN 818-7).
• Electro-galvanized hand chain.
• Robust steel sheet housing with orange powder coating.

Standard delivery

• 3 m lift (maximum distance between upper and lower hook).
• 2.5 m operating height.

Options

• Custom lift and operating heights available.

Certificates / Standards

• Marking: according to standard, CE marking
• Standards: EN 13157, EN 818-7

Characteristics / Specifications

• Product type: Manual chain hoist (Rema® X-Line)
• Example standard variant: PartCode 0170000-3, Model X-CH/250KG/3M
• Working load limit (WLL) example variant: 0.25 t (other variants: 0.25 / 0.5 / 1 / 1.5 / 2 / 3 / 5 / 10 t depending on model)
• Lift height (example): 3 m (other lift heights available: 3–10 m depending on variant)
• Number of fall parts: 1 (on many models)
• Load chain: 4.0 x 12 mm (for 250 kg version), other sizes depending on model
• Hand chain: 5.0 x 23.7 mm (on many models)
• Build height (construction): 260 mm (250 kg version) / 280 mm (500 kg version) / up to 820 mm on large models
• Operating force (example): 23.5 kg (250 kg version), up to ~40 kg on large models
• Weight (example): 6 kg (0170000-3 / 250 kg version), varies by configuration
• Material / finishes: Steel sheet housing with orange powder coating; electro-galvanized load and hand chain
