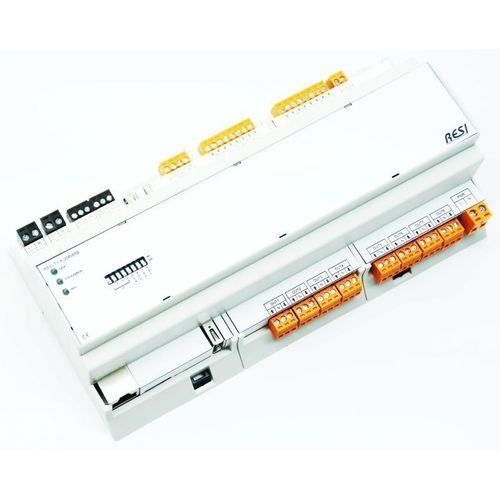

Remote control unit RESI-C4-A-4SB-2GB

TCP/IPfor home automationpositioning

Overview
Use the Raspberry Pi® Compute Module 4 inside an industrial-grade IoT controller developed by RESI for DIN-rail and wall mounting. Available in 4MU, 8MU and 12MU sizes to fit standard switchboard cabinets with a 45 mm front cutout. The platform supports shade and blind control with variants for 4 or 8 230 V motors and multiple IO configurations.

Key hardware enhancements

• Wide-range power input: 12–48 Vdc
• Integrated ARM® co-processor for RS485 and time-critical functions
• Co-processor features: unique 96-bit serial number, 2 kB ferromagnetic RAM for persistent values, real-time clock with backup capacitor, status LEDs and DIP switch

Standard Compute Module 4 features available

• 1× Micro HDMI
• 1× Ethernet
• 2× USB 2.0
• RAM options: 2 GB / 4 GB / 8 GB
• 32 GB SD card with Linux OS (standard)

Built-in inputs & outputs and IO handling
The ARM® co-processor manages integrated IO locally; application software accesses IO via serial interfaces. Provided interfaces:

• /dev/ttyACM0 — ASCII text protocol
• /dev/ttyACM1 — MODBUS/RTU master
• /dev/ttyACM2 — RS485 mapped via USB (native serial for Linux)

Available IO types include digital inputs/outputs, relay outputs, LED-strip outputs, temperature sensor inputs and dedicated shade & blind control outputs.

Universal analog inputs/outputs (AIOX)
AIOX modules are offered with 4, 8 or 16 channels. Each channel can be configured as:

• Analog input: 0/2–10 V or 0/4–20 mA
• Analog output: 0/2–10 V or 0/4–20 mA
• Resistor measurement: 0–1 MΩ
• Sensor input: PT100, PT1000, NI1000-DIN43760
• Digital input: 24 Vdc or dry contact

Software & integration
Controllers ship with a standard Raspberry Pi Linux distribution. Supported environments include Node-RED, Node.js, Python, Java, C#, C++, JavaScript, HTML and SQL/NoSQL databases (MariaDB, MongoDB, InfluxDB, PostgreSQL). Typical integrations: Grafana/Apache for UI, OpenHAB/FHEM/Home Assistant/IO Broker for automation, MQTT/HTTPS/Azure IoT/AWS for cloud connectivity, and OpenWrt/OpenRouter/OpenVPN/WireGuard for VPN/router use. CODESYS is supported for industrial PLC applications.

This product family / versions
Control 4 or 8 shades & blinds with 230 V motors depending on variant. Options include additional local push-button inputs, alarm inputs (wind/rain), a second Ethernet port or an integrated LTE modem. Not all combinations are available for every order code—check product details for exact order numbers.

Available selectable variants (examples)

• C4-shades&blinds: 4xSB
• C4-shades&blinds: 8xSB
• 10xRI + 4xSB
• 20xRI + 8xSB

Characteristics / technical specifications

• Reference: RESI-C4-A-4SB-2GB
• Model / series: C4
• Brand: RESI
• Price (excl. tax): 373.40 EUR
• Price unit: per piece
• Power supply: 12–48 Vdc
• Mounting: DIN rail and wall; 4MU / 8MU / 12MU; fits 45 mm front cutout
• Compute Module 4 interfaces: 1×Micro HDMI, 1×Ethernet, 2×USB 2.0
• RAM options: 2 GB, 4 GB, 8 GB
• Storage: 32 GB SD card with Linux OS (standard)
• Co-processor: 96-bit serial number, 2 kB ferromagnetic RAM, RTC with backup capacitor, status LEDs, DIP switch
• Serial interfaces: /dev/ttyACM0 (ASCII), /dev/ttyACM1 (MODBUS/RTU), /dev/ttyACM2 (RS485 via USB)
• IO options: digital I/O, relay outputs, LED-strip outputs, temperature sensor inputs, shade/blind control outputs
• AIOX channels: 4 / 8 / 16 with configurable channel modes
• AIOX configurations: analog IN 0/2–10 V or 0/4–20 mA; analog OUT 0/2–10 V or 0/4–20 mA; resistor 0–1 MΩ; PT100 / PT1000 / NI1000 sensor inputs; digital input 24 Vdc or dry contact
• Optional add-ons: second Ethernet port, integrated LTE modem
• Stock quantity (page data): 10 units (varies by variant)
