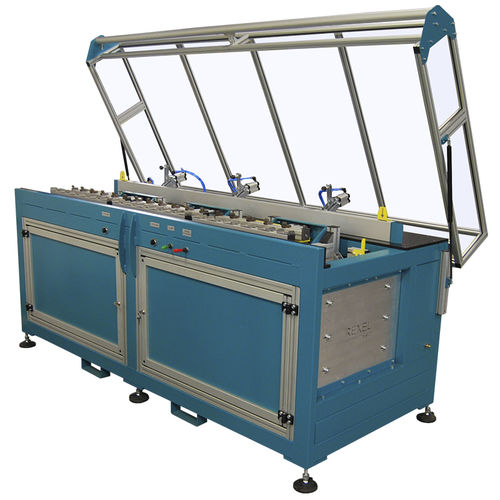

manual assembly machine / semi-automatic / for industrial applications / custom
NS-3

{{requestButtons}}

Characteristics

  • Operating mode:

    manual, semi-automatic

  • Applications:

    for industrial applications

  • Other characteristics:

    custom

Description

Key features:

- More universal machine for different sizes of frames.
- Can work for different frames up to 2000x790 mm (78.7”x 31.1”).
- Machine is designed for semi-automatic assembly of furniture frames with zig-zag springs and Rapid Clips.
- Machine frame is made of steel frame on special swivel feet, extending base, frame pneumatic clamps and pulling mechanism.
- Transparent cover made of aluminium and Plexiglas with end-switchers that prevent machine start when the cover is opened.
- Machine is equipped with bi-manual start system that controls extending base with pulling pneumatic cylinders.

Specifications:

Overall dimensions (WxDxH): 2482x1210x1152 mm (97.7"x47.6"45.3")
Pneumatics country of origin: Italy
Frame: steel
Machine can be custom made or adjusted for particular sofa frame and zig-zag springs.
