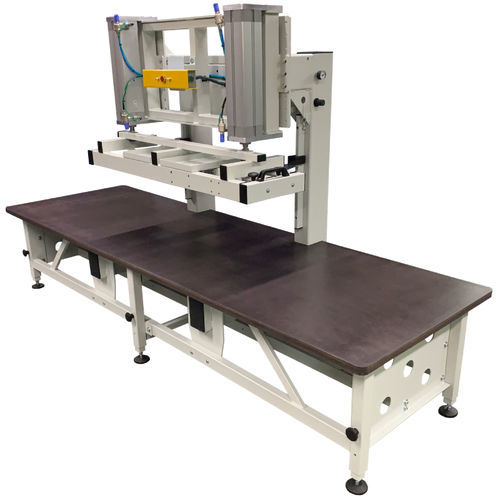

Pneumatic press PDM-1M-D

compressionfor the furniture industryupholstery

Description
PDM-1M-D is a pneumatic press for upholstering large furniture pieces using springs or upholstery foam. The special two-cylinder version includes a fold-out frame designed for long, narrow components such as benches and headboards.

Key features

• Pneumatic press engineered for increased efficiency in furniture manufacturing.
• Provides uniform compression of springs and foam to the required thickness across the entire surface.
• Time-saving design operable by a single operator; secures the furniture element in position and allows full access to the rear without repositioning.
• Pressing force is displayed on the operating pressure regulator mounted on the press head.
• Cylinder height is adjustable via holes in the frame.

Specifications

• Model: PDM-1M-D
• Tabletop dimensions: 2800 x 880 mm (110" x 34.6")
• Adjustable tabletop height: 558 - 858 mm (21.96" - 33.77")
• Upper press plate dimensions: 2280-3280 x 340 mm (89" - 129" x 13.38")
• Working pressure: 3 - 9 bar (43.5 - 130.5 PSI)
• Pneumatic cylinders: 2 x D100 x 350
• Pressure regulator: Yes
• Cylinder height adjustability: Yes

Characteristics / technical specifications

• Application: Upholstery of benches, headboards and large upholstered furniture
• Drive: Pneumatic
• Cylinders: 2, D100x350
• Frame: Fold-out for long, narrow parts
• Operation: Possible single-operator use
• Control: Integrated pressure regulator indicating pressing force
• Adjustment: Cylinder positions adjustable via frame holes
