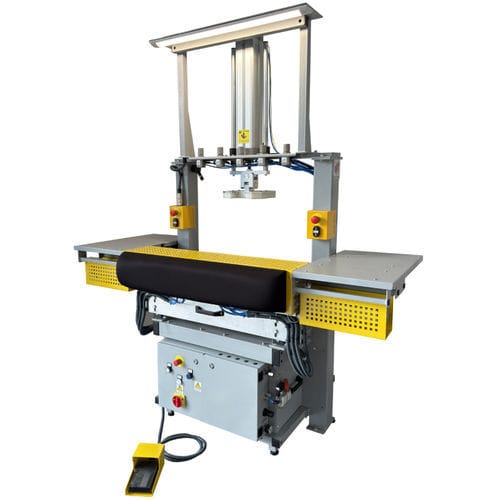

Pneumatic fabric pressing machine PDNS-2

Description
The PDNS-2 is an advanced pneumatic upholstery press with an automatic drawstring knot-tying system. After pressing the seat, the operator loops the drawstring around the retractable fingers. The drawstring mechanism operates step-by-step: each press of the foot pedal advances the system to the next stage (fingers forward → pullers inward, clamping and pulling → fingers back, pushers forward, release). This sequence reduces cycle time and eliminates the need to staple the string to the seat.

Key Features

• Improves efficiency, throughput and consistency in production of seats using a drawstring fastening method.
• Step-sequence foot control: each pedal press triggers the next action in the drawstring cycle.
• Two-hand safety control ensures the press head lowers only when both buttons are pressed simultaneously.
• Built-in pressure regulators allow precise adjustment of pressing force for each pair of cylinders to suit different drawstrings and seat types.
• Overhead work light for improved visibility.
• Cross-shaped laser pointer for accurate cushion centering.
• Emergency stop that vents cylinder pressure instantly.

Specifications
Model: PDNS-2
Adjustable tabletop height: 670 mm
Working pressure: 3–8 bar (43.5–116 psi)
Pressure regulator: Yes
Cylinder height adjustment: No
Voltage: 1~230 V AC
Power: 150 W

Technical summary

• Control: step-sequence foot pedal for drawstring cycle advancement
• Safety: two-hand safety control for press head lowering; EMERGENCY STOP vents cylinder pressure
• Pressure control: individual regulators per cylinder pair
• Positioning aids: cross laser pointer for centering
• Ergonomics: overhead lighting and adjustable tabletop height
