pneumatic press / RTM forming / compact / upholstery



  • Operation:


  • Function:

    RTM forming

  • Other characteristics:

    compact, upholstery, turntable

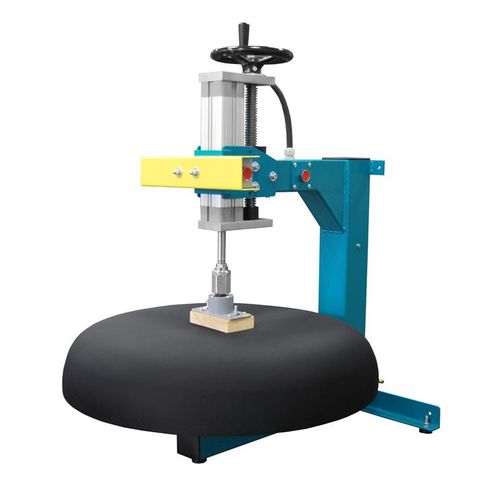

PDP-1 is compact version, perfect for upholstering small elements. Can be placed on a table.

Key features:

- Using this press one can significantly improve efficiency, productivity and quality of your chair manufacturing department.
- The press is a perfect machine for office chair seats or backrests upholstery.
- The control device with two-hand button control system ensures safety when operating the press. It is possible to adjust the pressing force using air pressure regulator.
- Long stroke of the pneumatic cylinder and lower telescopic stand allow adjusting press to a comfortable height for the operator.
- The press provides controllable and even pressing of the chair seats and backrests (fabric, upholstery foam, chipboard), so there is no need to pull the material to ensure its right tension.
- Press is equipped with rotary cushion that makes upholstery nice and easy.
- Pressure can be adjusted using hand wheel (РDР-1/PDM-1).


Model: PDP-1
Overall dimensions: 600 x 600 x 900 mm (23.62" x 23.62" x 35.43")
Cushion diamerer: 750 mm (29.52")
Working pressure: 3-6 bar (43.5-87 PSI)
Pneumatic cylinder: D63x200
Two-button safety start system: Yes
Pressure regulator: Yes
Cylinder height hand wheel: Yes
