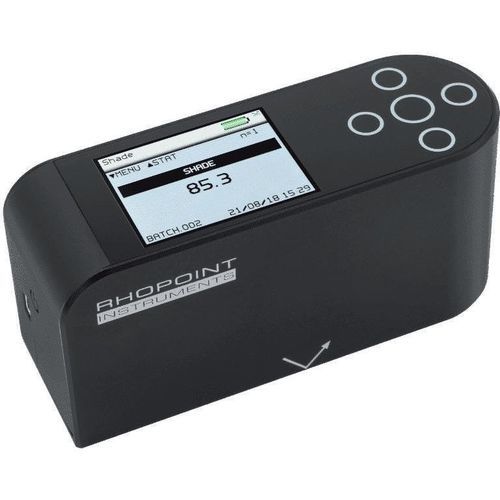

Portable reflectometer Novo-Shade Duo+

Short description

• Portable 45/0° reflectometer for measuring shade (lightness), opacity (hiding power) and substrate cleanliness.
• Suitable for paints, coatings, inks, plastic films, paper, textiles and similar materials.
• Fast single-press and continuous-read measurements with on-board statistics and trend analysis.

Overview
The Novo-Shade Duo+ is a compact, handheld instrument that measures greyscale shade (black = 0 to calibration white) and calculates opacity by comparing measurements over white and black substrates. The 45/0° geometry excludes specular gloss from the shade reading. The device supports continuous-read mode for rapid surface assessment and provides instant on-board statistics (max, min, mean, standard deviation) and graphical trend analysis.

Operating modes

• Shade mode: Place the instrument on the sample and press the centre button. The greyscale shade value is displayed. Continuous-read is available for rapid checks. On-board statistics and trend graphs assist batch evaluation.
• Opacity mode: Measure the sample over a white substrate and then over a black substrate (Leneta-type opacity charts recommended for coatings). Opacity (0 = transparent to 100 = opaque) is calculated automatically.
• Cleanliness mode: Collect surface debris with clear tape, adhere to a white substrate alongside a clean reference tape and measure both. Cleanliness change (0 = no change to 100 = maximum change) is computed automatically.

Applications

• Shade measurement and batch control for paints, inks and coatings.
• Hiding power and opacity assessment for coatings, films, paper and textiles.
• Clarity and transparency checks of plastic films and sheets.
• Substrate cleanliness and contamination checks on metal, coated panels and plastics using tape tests.
• Evaluation of detergents, bleaches and whitening agents for whiteness/brightness changes.

Features

• 45/0° reflectance geometry: measures colour/lightness excluding specular gloss.
• Fast single-press measurement and continuous-read capability (Shade mode).
• Full-colour, easy-to-read display with adjustable brightness and on-board graphical trend analysis.
• 5-button capacitive user interface and user-definable alphanumeric batching.
• On-board statistics: Max, Min, Mean, Standard Deviation and trend graphs.
• Automatic calibration with certified tile validation and in-position detector.
• Data transfer via USB (device appears as removable drive) and Bluetooth; rapid file transfer without mandatory software; optional Novo-Gloss Multi Gauge software available.
• Rechargeable lithium-ion battery: >17 hours operation or >20,000 readings per charge; rechargeable by USB or mains charger.

Included accessories

• Certified calibration tile with certificate.
• USB data cable and USB data stick containing manual, example spreadsheets and app.
• Wrist strap.
• Novo-Gloss Multi Gauge software on USB stick (optional software supplied as stated).

Technical specifications

• Statistical analysis: Max, Min, Mean, Standard Deviation.
• Graphical analysis: On-board trend graph display.
• Power: Rechargeable lithium-ion battery; >17 hours operation; >20,000 readings per charge.
• Recharge time: Mains charger approx. 4 hours.
• Standards: Compatible with ASTM E97, ASTM D4214, ASTM D2805, ASTM D589, BS 3900-D4, BS 3900-D7, DIN 6125, ISO 2814, ISO 6504.
• Memory: 8 MB (≈ 999 readings); user-definable alphanumeric batching.
• Data transfer: Bluetooth and USB (USB appears as removable drive; CSV file transfer without required software).
• Performance: Resolution 0.1; Repeatability 0.2%; Reproducibility 0.5%.
• Operating environment: 15 °C to 40 °C; humidity up to 85% non-condensing.
• Measurement spot size: 15 mm × 10 mm (ellipse).
• Unit dimensions: 65 mm (H) × 140 mm (W) × 50 mm (D); Unit weight: 790 g; Packed weight: 1.75 kg; Packed dimensions: 180 mm (H) × 330 mm (W) × 280 mm (D).
• Commodity code: 9027 5000.
• Order code / SKU: A4000-010 (product family A4000-010.2 referenced).
• Measurement scales: Shade: 0 = black to 100 = calibration white; Opacity: 0 = transparent to 100 = opaque; Cleanliness: 0 = no change to 100 = maximum change.
