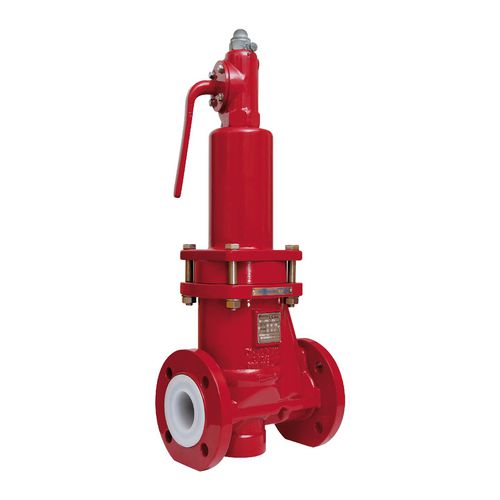

High-pressure relief valve GU seriesflange
Add to favorites
Compare this product
Characteristics
- Applications
- high-pressure
- Other characteristics
- flange
- Controlled pressure
16 bar
(232.1 psi)- DN
Min.: 25 mm
(0.984 in)Max.: 80 mm
(3.15 in)
Description
Features
•Reliable safeguarding against over pressure (overflow valve)
•Reliable maintaining of plant pressures (pressure relief valve)
•Maximum reliability due to thick-walled PFA lining
•Optimum environmental protection: hermetically tight thanks to bellows design
Specifications
•Design - ANSI-ISA-75.08.01 / DIN-ISO
•Nominal Pressure - Class 150 / 16 bar
•Lining - PFA
•Housing Material - EN-JS 1049 / ASTM A395
•Face-to-Face - ANSI/ISA-75.08.01 / DIN EN 558-1 and ISO 5752 series 1
•Flanges to ASME B16.5, raised face or ISO 7005-2, type B
•Temperature Range - -60 °C to +180 °C (-75 °F to +360 °F)
•Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)
