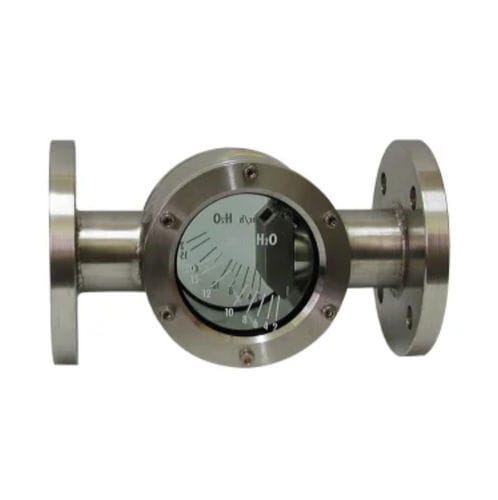

Stainless steel sight glass RIV990
level indicatorflange

stainless steel sight glass
stainless steel sight glass
Add to favorites
Compare this product

Characteristics

Specifications
stainless steel, level indicator, flange
Operating temperature

100 °C (212 °F)

Operating pressure

10 bar (145 psi)

DN

Max.: 100 mm (4 in)

Min.: 15 mm (1 in)

Description

Threaded process connections from 1/2" to 2" Flanged process connections UNI PN16 - ANSI - TriClamp from DN15 to DN100 Materials body carbon steel - AISI 316L Tempered glass round window, graduated Temperature up to 100°C Pressure up to 10 bar Visual indicatorsfor visual flow of liquids in industrial processes and sensing external mechanical where fluid is very dirty. Horizontal installation in ducts. Of sturdy structure and practical design they are indicated for use on plants where it is not required a high precision of measurement. Reading is done on the front of a screen-printed scale on the portholes. They are made of different materials, including scope to mobile pallet a free pass.
