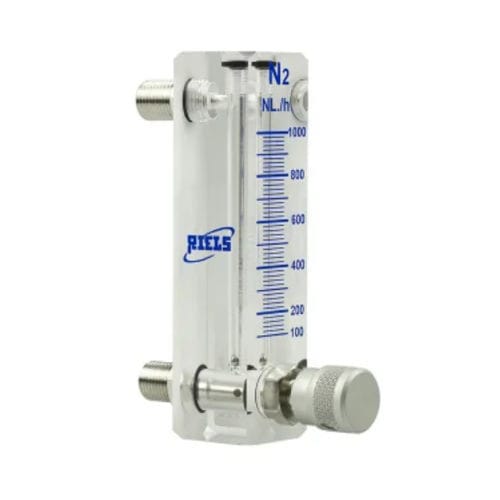

Variable-area flow meter RIV200G series

volumefor gasDN10 - 3/8"

The Flowmeters of the RIV200G series are instantaneous flow meters suitable for measuring small flow rates of air or inert gases. The flow rate measurement can be read accurately on the graduated scale screen-printed on the structure of the instrument. The structure is made of acrylic material with a conical measuring hole cut directly into the body of the meter. The float usually spherical in AISI 316, can be in other materials depending on the type of process fluid. The flowmeter is equipped with a needle tap for adjusting and dosing the fluid to the desired value. Photocells for minimum/maximum range alarm or both can be combined upon request. Product features Detection type - Continuous measurement Explosion protection - Safe zone Version - With brass fittings Measurement type - With contact Special executions - Square connection Mechanical data Body material - Plexiglass Height - 105 mm Width - 85 mm Depth - 30 mm Distance between holes - 75 mm Approvals Naval approvals - None Food / pharmaceutical approvals - None Atex approvals - None CE omologation - Yes Logistics Type of packaging - Carton BOX Contains batteries - No country of origin - Italy Gross weight - 0,42 kg Net weight - 0,22 kg Packaging volume - 0,007 m³ Packing length - 26 cm Packaging width - 21 cm Packaging depth - 13 cm
