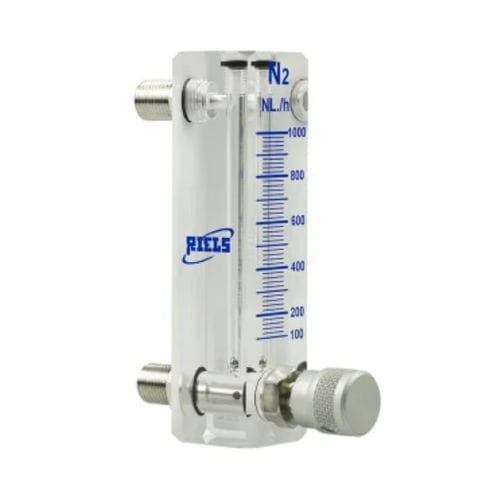

Fuel flow meter FA/M
for waterfor oilfor chemicals

fuel flow meter
fuel flow meter
fuel flow meter
fuel flow meter
Add to favorites
Compare this product

Characteristics

Fluid
for fuel, for water, for oil, for chemicals, for wastewater, for nitrogen, for compressed natural gas, for oxygen, for corrosive fluids, for acids, for conductive liquids, for natural gas, for air, for compressed air, for steam
Other characteristics
compact, plastic tube, direct-reading, stainless steel, brass, PVC, threaded, direct mounting
Applications
for the food industry, for the pharmaceutical industry, for water treatment, sanitary, laboratory, for gas mixing, for medical applications, for coffee machines
Process pressure

Max.: 10 bar (145.04 psi)

Min.: 0 bar (0 psi)

Process temperature

Max.: 70 °C (158 °F)

Min.: 0 °C (32 °F)

Volumetric flow rate

150 l/h (39.6 us gal/h)

Description

Measuring principle variable area Flow range for liquids up to 150 l/h Flow range for gaseous fluids up to 80 Nl/min. Process connection square; lateral, frontal ¼" or 3/8" Gas Temperature 70°C max Pressure up to 10 Bar The flowmeterstype FA/M are instant flow measuring devices suitable for measurements of small flows of liquids and gases. The flow rate should be read with good precision on the scale suitably graduated, screen-printed on the structure of the instrument and the cone of measurement is obtained directly in the body of acrylic material. The structure is made of acrylic material with a tapered bore measurement obtained directly in the meter body. The float usually spherical in AISI 316, according to the process fluid, can be in nylon, glass, aluminum and other materials. The flowmeteris equipped with a needle valve for the adjustment and the dosage of the fluid to the desired value. Particularly it is used in gasoterapia, purges, analysis and level measurements.
