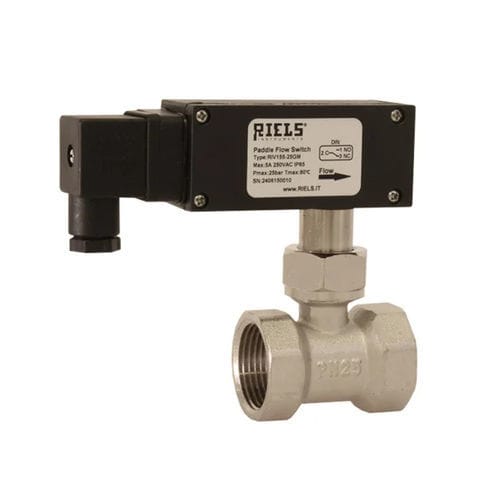

Mechanical flow switch RIV150 series

paddlefor liquidsthreaded

The RIV150 vane flow switch is suitable for heating or air conditioning systems and refrigeration systems. It is used to control the flow of non-corrosive liquids. The stainless steel vane is moved by the flow which overcomes the reaction of the return spring. The terminal part of the vane arm is fixed to a primary magnet, which controls a secondary magnet outside the flow chamber and mounted on the contact lever of the microswitch. The electric head is separate from the mechanical equipment of the instrument and can be replaced without removing the flow switch from the hydraulic circuit. By opening the protective plastic it is possible to slightly change the interruption value by adjusting the indicator between the minimum and maximum. The adjustment scale refers to the decreasing flow in the horizontal position. During installation, attention must be paid to the correct flow direction. A free section of pipe must be provided in front of and behind the flow switch equal to at least five times the diameter of the pipe itself. TECHNICAL DATA ocumentation included - English instructions manual, Italian instructions manual Explosion protection - Safe zone Minimum process fluid temperature - -20 °C Maximum process fluid temperature - 110 °C Measurement type - With contact Storage temperature - -20...+70 °C Ambient temperature - -20...+70 °C Adjustable calibration - Si Flow max (liquid) - 10 L/min Flow min (liquid) - 5 L/min Paddle type - Universal paddle
