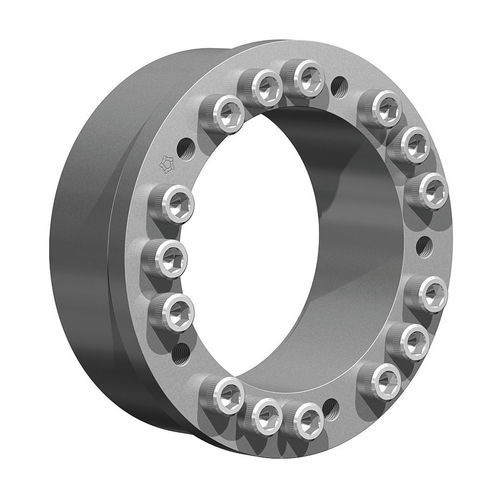

Locking device coupling RfN 7013.1

stainless steelself-centeringtransmission

These flange type units is made of stainless steel and fix the hub positively against their extended flange preventing axial movement during tightening. Applied wherever self-centering action and good concentricity of mounted components are essential and hubs with straight-thru bores are used. Available sizes: Metric series shafts from 20 mm to 150 mm dia. and Inch series for shafts from 1” to 4” diameter. Product Characteristics Excellent concentricity and very easy to dismantle – these Locking Assemblies provide particularly good concentricity between the clamped parts. The flange is reinforced at the critical point, preventing bending or lifting of the inner ring during assembly and thereby ensuring easy dismantling. High rotation speed – the dimensional accuracy of the RfN 7013 Locking Assemblies allows their use in applications with higher rotational speeds. High radial loads – the material strength of the RfN 7013 Locking Assemblies makes them especially suitable for applications with high radial loads. Axial hub positioning – the increased outer diameter of the flange prevents the axial movement of the hub during assembly, and improves the run-out ability of the Locking Assembly. High torque – the increased number of clamping screws ensures the same transmission values as the RfN 7013.0.
