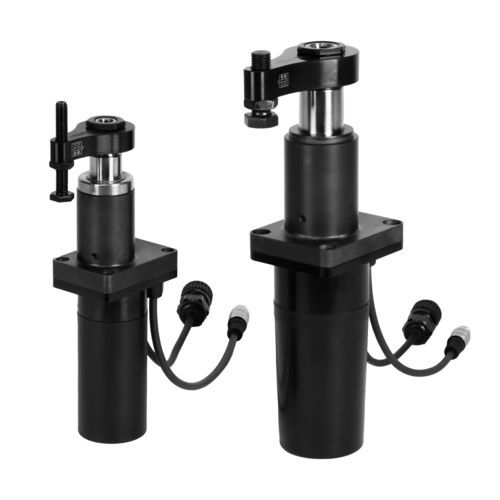

Electric swing clamps

Advantages
● High clamping force
● Adjustable clamping force
● Clamping force monitoring (error code output)
● Can be controlled individually or in common
● High operating safety by self-locking spindle drive
● Mechanical reclamping by Belleville springs
● Swing angle up to 180° available
● Overload protection device in the case of collisions with the clamping arm
● Electric position monitoring and extensive self-monitoring with error message
● Clamping stroke control possible
● Low voltage 24 V
● Leakage free
● Maintenance free (500,000 cycles).
● Code class IP 67

Electric swing clamps are used for clamping or holding of workpieces
- where the use of hydraulic clamping elements is not possible
- where the clamping force must be maintained also after the separation from the energy supply
- when clamping elements have to be controlled individually
- when an extended functionality is required for automated systems
- when the clamping and holding points shall be free for loading and unloading of the fixture

Electric swing clamps are particularly suited for:
• Packaging industry
• Test systems
• Special machines
• Assembly equipments and robotics
• Automatic manufacturing systems
• Clamping fixtures with workpiece loading via handling systems

top flange
position and clamping force monitoring
minimum energy demand
axial pulling force: 3 - 9 kN
max. clamping force: 7 kN
clamping stroke: 20 mm
swing stroke: 3 mm
max. clamping time: 3.5 s
max. clamping arm length: 150 mm
supply voltage: 24 VDC
