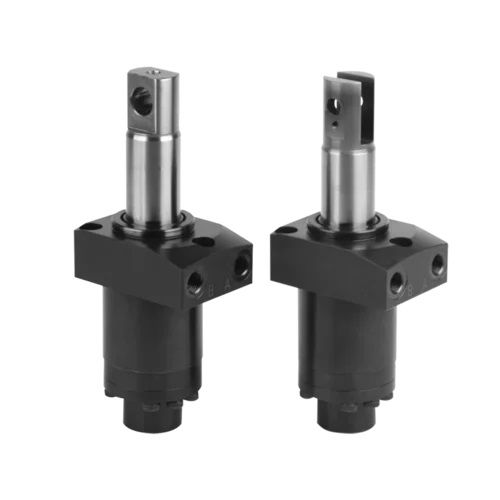

Hydraulic clamp B 1.8802, B1.8812
swingdouble-acting

hydraulic clamp
hydraulic clamp
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Other characteristics
swing, double-acting
Clamping force

Min.: 1.4 kN

Max.: 11.2 kN

Description

Swing clamps with pendulum eye or fork head Advantages ● Introduction of clamping force without side loads ● Compact design ● Double clamping arm facilitates multiple clamping of similar workpieces ● Pendulum eye for high clamping forces ● Fork head for simple clamping arms ● Alternatively pipe thread or drilled channels ● Reinforced swing mechanism ● FKM wiper standard ● Available with position monitoring Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. The version with pendulum eye or fork head allows simultaneous clamping of two workpieces with half clamping force. Top flange/bottom flange position monitoring optional reinforced swing mechanism double acting max. operating pressure 500/160 bar max. clamping force: 1.4 - 11.2 kN rod diameter: 20 - 32 mm piston diameter: 25 - 40 mm clamping stroke: 22 - 25 mm max. flow rate: 8 - 20 cm³/s
