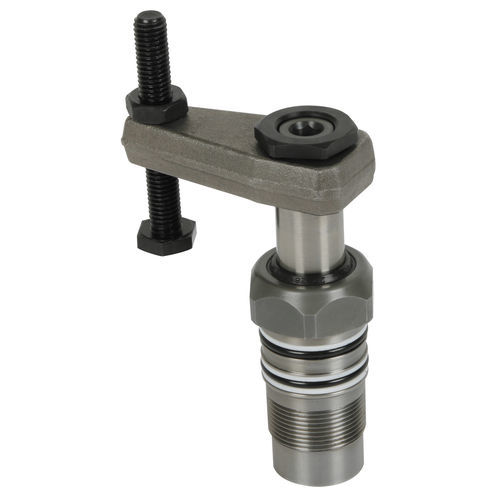

Hydraulic clamp B1.891

swingdouble-actingsingle-acting

Swing clamps with overload protection device These hydraulic swing clamps are used when it is required to keep the fixture workpieces area free of straps and clamping components for unrestricted workpiece loading and unloading. This design allows the use of swing clamps even in restricted places. The threaded-body swing clamp can be sunk directly into the fixture up to the hexagon. threaded-body type single and double acting max. operating pressure 500 bar max. clamping force: 4.0 kN rod diameter: 20 mm piston diameter: 23 mm clamping stroke: 7 mm max. flow rate: 1.5 cm³/s
