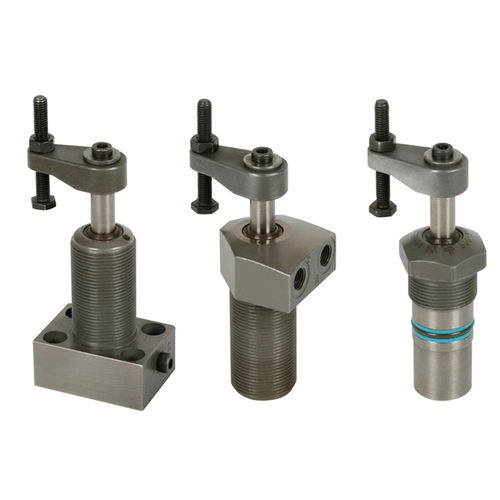

Hydraulic clamp B1.849, B1.8491
swingdouble-actingthreaded body

hydraulic clamp
hydraulic clamp
Add to favorites
Compare this product


Other characteristics
swing, double-acting, threaded body, flanged, single-acting
Clamping force

2.2 kN


Compact swing clamps bottom flange, top flange, threaded-body type Hydraulic swing clamps are used for clamping of workpieces when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. The units are available with clockwise and counterclockwise swing motion or without swing motion (0°). The swing direction of each swing clamp can also be changed, as described in the operating instructions. 5 connecting types single/double acting pulling force up to 2.63 kN max. operating pressure 350 bar max. clamping force: 2.2 kN rod diameter: 10 mm piston diameter: 14 mm clamping stroke: 6/8 mm max. flow rate: 2.5/5 cm³/s


Other Römheld GmbH Friedrichshütte products

Workpiece clamping elements
