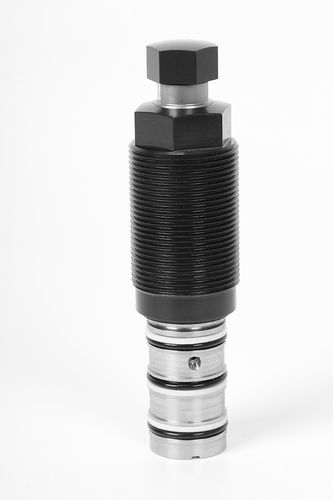

Hydraulic cylinder B1.943, B1.944
double-actingsingle-acting

hydraulic cylinder
hydraulic cylinder
hydraulic cylinder
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Configuration
double-acting, single-acting
Stroke

Max.: 16 mm (0.63 in)

Min.: 8 mm (0.315 in)

Force

Max.: 42 kN

Min.: 6.5 kN

Description

Threaded-body work supports Advantages ● High process safety by double-acting function ● Space-saving threaded-body version ● 4 sizes available ● Load force up to 42 kN ● Workpiece contact by spring force ● Optional pneumatic contact control ● Metallic wiper edge ● Protected FKM wiper ● Protection cap available as accessory ● Inner parts protected against corrosion ● Venting of the spring area ● Connection of positive air pressure protection possible ● Installed orifice for flow rate limitation ● Mounting position: any Hydraulic work supports are used to provide a self-adjusting rest for workpieces and avoid their vibration and deflection under machining loads. The threaded-body design allows for space-saving and direct installation into the fixture body. Hydraulic oil supply and venting are made via drilled channels. In case of the double-acting version the return stroke of the support plunger is effected in a precisely defined time, that is above all advantageous in cycle-dependent installations. with metallic wiper edge optional contact control double/single acting max. operating pressure 500 bar external thread: M30 - M60 max. load force: 6,5 - 42 kN plunger diameter: 16 - 32 mm plunger stroke: 8 - 16 mm elastic deformation: 2,5 - 3,5 μm/kN
