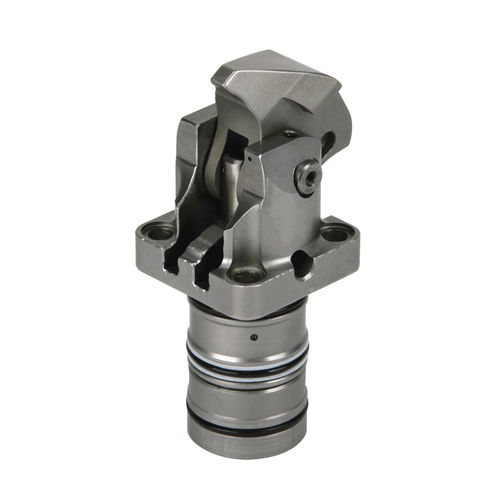

Hydraulic clamp B1.827, B1.828
double-actingcompact

hydraulic clamp
hydraulic clamp
hydraulic clamp
Add to favorites
Compare this product


Characteristics

Type
hydraulic
Other characteristics
double-acting, compact
Clamping force

Min.: 2.5 kN

Max.: 10.5 kN

Description

Compact Clamps Advantages ● Minimum dimensions ● Mounting without pipes ● Metallic wiper edge for piston rod ● Clamping lever can be swivelled into small recesses ● Workpiece clamping without any side loads ● Unimpeded loading and unloading of the clamping fixture ● Long clamping lever adaptable to the workpiece ● Mounting position: any Compact clamps are designed for application in hydraulic clamping fixtures where oil supply is effected through drilled channels in the fixture body. Due to the minimum space required, the compact clamp is especially suitable for clamping fixtures with little space for the installation of hydraulic clamping elements. A clamping recess in the workpiece a little bit wider than the clamping lever is sufficient as clamping surface. Typical applications are: • Rotary indexing fixtures in horizontal and vertical machining centres • Clamping fixtures for machining of several sides and complete machining • Multiple clamping fixtures with many workpieces that are closely arranged • Test systems for motors, gears, etc. • Assembly lines cartridge and flange type, with optional pneumatic position monitoring double acting max. operating pressure 250 bar max. clamping force: 2.5 - 10.5 kN usable clamping stroke: 4.5 - 8.5 mm adm. flow rate 4 - 25 cm³/s
