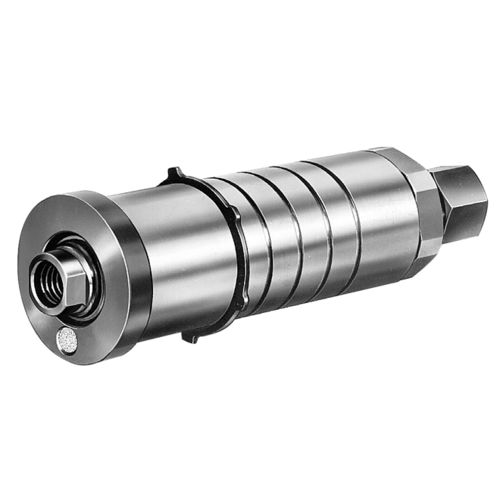

Clamping cylinder B1.310 serieshydraulicspring-return
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Configuration
- spring-return
- Applications
- clamping
- Stroke
20 mm, 22 mm, 50 mm
(0.787 in, 0.866 in, 1.969 in)- Pressure
200 bar, 500 bar
(2,900.75 psi, 7,251.89 psi)- Rod diameter
6 mm, 16 mm, 25 mm, 32 mm
(0 in, 1 in, 1 in, 1 in)- Force
Min.: 3.7 kN
Max.: 39 kN
Description
single acting with spring return
max. operating pressure 200 / 500 bar
Universal clamping cylinders are particularly suited for clamping fixtures designed to hold various sizes of workpieces (parts families). They can be mounted directly into the fixture wall or installed into horizontal or vertical mounting brackets which are available as accessories. Spacers and C-washers provide axial adjustment in increments of
10 mm. Bleeding is effected via fitting connection or via bleeding screw for type 1316.
