Hydraulic cylinder B1.311 series
pistondouble-actingclamping

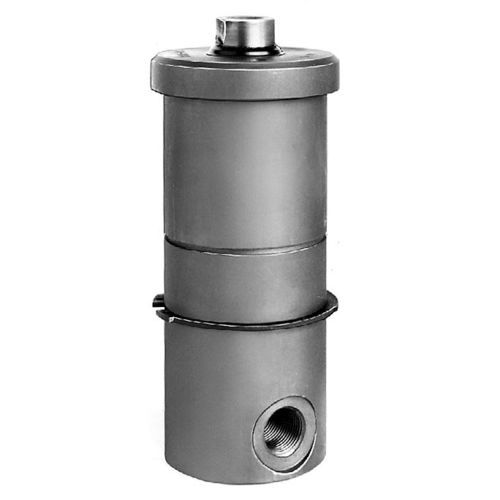

Hydraulic cylinder - B1.311 series - Römheld GmbH Friedrichshütte - piston / double-acting / clamping
Hydraulic cylinder - B1.311 series - Römheld GmbH Friedrichshütte - piston / double-acting / clamping
Add to favorites
Compare this product

Characteristics

Type
hydraulic
Technology
piston
Configuration
double-acting
Applications
clamping
Stroke

32 mm, 40 mm, 50 mm, 64 mm
(1.26 in, 1.575 in, 1.969 in, 2.52 in)

Pressure

Max.: 400 bar
(5,801.51 psi)

Min.: 0 bar
(0 psi)

Rod diameter

14 mm, 18 mm, 22 mm, 28 mm, 36 mm
(1 in, 1 in, 1 in, 1 in, 1 in)

Force

Max.: 124.4 kN

Min.: 19.6 kN

Description

double acting max. operating pressure 400 bar These cylinders are used as lifting and clamping cylinders in machine and fixture building. They can be inserted in the smooth throughhole and fixed in different levels by means of a locking ring. • Large clamping force range • Radial and axial oil ports • High degree of sealing • Wiper as protection of contamination, swarf, and coolants
