Application / Description
HV-safe temperature measurement in high-voltage environments. Suitable for battery systems and HV power electronics where isolated sensor wiring and documented HV testing are required.

Additional information
HV test certificate issued with batch number for full traceability. Optional: testing and repair of sensors in service on request. SAB marking: part number and batch number.

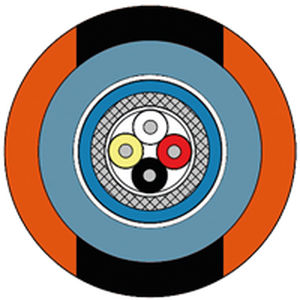

Cable data 1 x 8 cores
Designation: HV measurement cable – 1 x 8 cores. Insulation: FEP according to DIN 47100 1-8 (conductor Ø 0.45 mm). Outer jacket: PUR. Stranding: layer-optimized. Outer diameter: approx. 4.6 mm. Voltage rating: 1000 V AC over orange inner jacket. Temperature range: static: -40°C / +150°C; flexing: -40°C / +150°C.

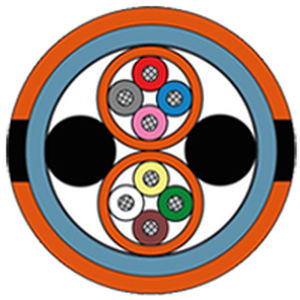

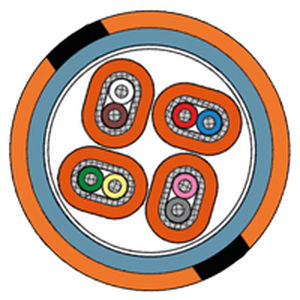

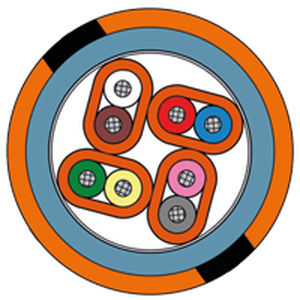

Cable data 2 x 4 cores
Designation: HV measurement cable – 2 x 4 cores. Insulation: FEP according to DIN 47100 1-8. Outer jacket: PUR. Stranding: layer-optimized. Outer diameter: approx. 7.3 mm. Voltage rating: 1000 V AC over orange bundle jacket. Temperature range: static: -40°C / +150°C; flexing: -40°C / +150°C.

Sensor
Sensor type: 2 x PT100. Accuracy class: Class A. Wiring: 4-wire. Measurement point: embedded in PI-film adhesive pad. Sensor geometries (examples): 2.3 mm x 2.0 mm x 0.47 mm (suitable for pouch cells) or 3.0 mm x 0.80 mm x 0.60 mm. Single-channel temperature range: -30°C to +180°C.

Connector
Lemo / Redel connector: with orange strain-relief sleeve and black protective cap, 8-pin, Code C. 1000 V AC rated – IP67 when mated.

Tests
Cable test: conductor-to-conductor 2500 V AC – 5 min over orange bundle jacket; 5000 V AC – 5 min – in accordance with EN 50264-2-1. Sensor test: 100% inspection at the assembled connector according to measuring-equipment standard 61010-1 and VDE specifications in an in-house test bath (test rig approved by VDE). External touch protection check – 3000 V/1 min AC.

Configuration examples
Part No.: T641-060-817 | lead length: 2000 mm | channel 1 length: 70 mm | channel 2 length: 70 mm
Part No.: T641-060-870 | lead length: 5000 mm | channel 1 length: 700 mm | channel 2 length: 700 mm. Total and channel lengths configurable.

Downloads
Datasheet for HV 2 x PT100/PT1000 resistance thermometer (PDF - technical datasheet available).

Technical specifications

• Product: HV 2 x PT100/PT1000 resistance thermometer
• Sensor type: 2 x PT100 (Class A), 4-wire
• Single-channel temperature range: -30°C to +180°C
• Cables: FEP-insulated conductors, PUR outer jacket
• Cable variants: 1 x 8 cores (Ø approx. 4.6 mm) or 2 x 4 cores (Ø approx. 7.3 mm)
• Cable voltage rating: up to 1000 V AC (over orange inner/bundle jacket)
• High-voltage tests: conductor-to-conductor 2500 V AC (5 min), 5000 V AC (5 min) per EN 50264-2-1
• Connector: Lemo/Redel 8-pin, Code C, IP67 mated, 1000 V AC rated
• Measurement point: PI-film adhesive pad (various sensor geometries available)
• Traceability: HV test certificate issued with batch number
• Configurable lengths; example Part No.: T641-060-817, T641-060-870
