Electrical data cable

LEMOinsulatedIP67

Application / Description
HV extension cable - extension for 4- or 1-channel high-voltage sensors Type K

Product advantages

• Touch protection across all components

Additional information
Issuance of an HV test certificate referencing the batch number for full traceability. Optional: inspection and repair of sensors already in service upon request. SAB marking: item number, batch number, length.

Cable data
Connection cable: HV thermocable Type K
Insulation: FEP – green and white
Pair jacket: FEP – orange with green longitudinal stripes
Inner jacket: FEP – blue (RAL 5024)
Outer jacket: PUR
Jacket colour: orange with green longitudinal stripes

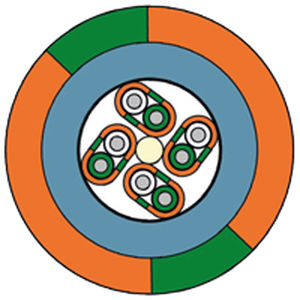

Stranding: pair-stranded construction (for EMC)
Outer diameter: 4-channel: approx. 6.1 mm; 1-channel: approx. 3.4 mm
Voltage rating: 4-channel: 1000 V AC; 1-channel: 1000 V AC per single channel
Temperature range: static: -50°C / +150°C; dynamic: -40°C / +150°C

Connectors
Lemo Redel connectors: plug and socket, with orange strain relief and black protective cap. 4-channel: 8-pin, Code B, 1000 V AC rated – IP67 when mated. 2-channel: 2-pin, Code C, 1000 V AC rated – IP67 when mated.

Tests
Cable test: via pair jacket in water bath – 5000 V AC – 5 min – according to EN 50264-2-1
Product test: individual testing on assembled connector according to measurement device standard IEC/EN 61010-1 and VDE specifications in the in-house immersion test bench (test bench acceptance by VDE). Verification of external touch protection – 3000 V AC / 1 min

Configuration examples
T141-054-030 — 1000 mm — 4 channels
T141-054-143 — 2000 mm — 4 channels
T141-058-575 — 3000 mm — 4 channels
T141-058-576 — 5000 mm — 4 channels
T141-062-840 — 1000 mm — 1 channel
T141-062-843 — 3000 mm — 1 channel
T141-062-844 — 5000 mm — 1 channel
Total lengths available on request.

Downloads
Datasheet: HV 4- and 1-channel extension cable with FEP-insulated thermocouple channels (PDF)

Characteristics / Technical specifications

• Application: extension of 4- or 1-channel high-voltage sensors Type K
• Insulation / pair jacket / inner jacket: FEP (colours as specified)
• Outer jacket: PUR
• Outer diameter: 4-channel approx. 6.1 mm; 1-channel approx. 3.4 mm
• Stranding: pair-stranded construction (EMC)
• Voltage rating: 1000 V AC (4-channel and 1-channel per single channel)
• Cable test voltage: 5000 V AC, 5 min (EN 50264-2-1)
• Product test: according to IEC/EN 61010-1 and VDE, touch protection test 3000 V AC / 1 min
• Temperature range: static -50°C to +150°C; dynamic -40°C to +150°C
• Connectors: Lemo Redel, 4-channel: 8-pin Code B; 2-channel: 2-pin Code C; IP67 when mated
• SAB marking: item number, batch number, length
