Electrical data cable HV

LEMOshieldedround

Application / Description
HV-safe acceleration measurement cable for use with IEPE accelerometers and measurement modules (e.g. CSM HV IEPE3 FL100). Designed for triaxial sensor connection and high-voltage environments.

Product benefits

• Touch safety for high-voltage operation — see documentation/illustration

Additional information
Issuance of an HV test certificate referencing the batch number to ensure full traceability. Optional: inspection and repair of already installed sensors on request.

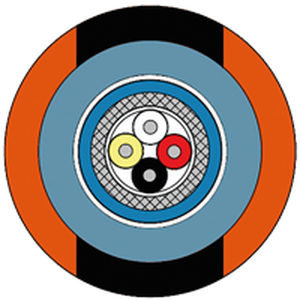

Cable data
Connection cable: HV IEPE sensor cable
Conductor insulation: PFA – red, white, black, yellow
Bundle jacket: PFA – blue (RAL 5015)
Inner jacket: PUR – blue (RAL 5024)
Outer jacket: PUR
Sheath colour: orange with black longitudinal stripes
Laying/twist: optimised lay in layers
Outer diameter: approx. 4.3 mm
Voltage rating: 1000 V AC across second inner jacket
Temperature range (static): -50°C to +150°C
Temperature range (dynamic): -40°C to +150°C

Sensor connection side
Connector: 4‑Pin ¼‑28 UNF female connector for connection to triaxial IEPE accelerometers (also available: 4‑Pin 8‑36 UNF and 4‑Pin M4.5).
Shielding: bundled exit, insulated with heat-shrink sleeve
Bundle-channel temperature range: -55°C to +250°C

Connectors
Lemo / Redel connector: with orange strain-relief sleeve and black protective cap, 8‑pin, Code C. 1000 V AC voltage withstand – IP67 when mated.

Tests
Cable tests: Conductor-to-conductor – 600 V AC – 1 min – per IEC 60584-1 over the second inner jacket in a water bath; 5000 V AC – 5 min – in accordance with EN 50264-2-1.
Product test: Individual check on the assembled connector in accordance with instrument standard IEC 61010-1 and applicable VDE specifications in an in-house test bath (test setup approved by VDE). Verification of touch safety to the outside – 3000 V AC / 1 min.

Configuration examples
Art.-No. | Connection cable length | Channel 1 length | Ground length | Connector
T642-062-666 | 3000 mm | 100 mm | 200 mm | 4‑Pin ¼‑28 UNF
T642-062-794 | 6000 mm | 100 mm | 200 mm | 4‑Pin ¼‑28 UNF
T642-062-635 | 3000 mm | 100 mm | 200 mm | 4‑Pin 8‑36 UNF
Total and channel lengths are available on request.

Technical specifications

• Connection cable: HV IEPE sensor cable
• Conductor insulation: PFA (red, white, black, yellow)
• Bundle / inner / outer jacket: PFA (bundle), PUR (inner and outer)
• Outer diameter: approx. 4.3 mm
• Voltage rating: 1000 V AC (across second inner jacket); cable tests up to 5000 V AC per EN 50264-2-1
• Temperature range: static -50°C to +150°C; dynamic -40°C to +150°C; bundle channel -55°C to +250°C
• Connectors: 4‑Pin ¼‑28 UNF (also 8‑36 UNF, M4.5), Lemo/Redel 8‑pin Code C (1000 V AC rated, IP67 when mated)
• Shield: bundled exit, heat-shrink insulated
• Tests: IEC 60584-1 (cable test), EN 50264-2-1, IEC 61010-1, touch-safety test 3000 V AC / 1 min
• Traceability: article number and batch number marking
