Electrical data cable

DINLEMOIP67

Application/Description
Extension cable for HV 2 x PT100/PT1000 sensors for high-voltage measurement installations.

Product benefits

• Touch protection across all components

Additional information
Issuance of an HV test certificate referencing the batch number for full traceability. SAB marking: article number, batch number, length.

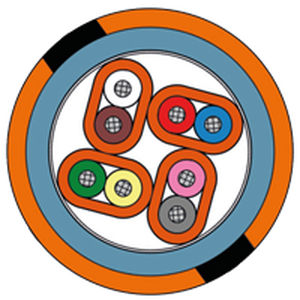

Cable data
Connection cable: HV measuring cable
Insulation: FEP – according to DIN 47100 1-8
Pair jacket: FEP – orange (RAL 2004)
Inner jacket: PUR – blue (RAL 5024)
Outer jacket: PUR
Sheath colour: orange with green longitudinal stripes
Stranding: optimally layered
Outer diameter: approx. 7.4 mm
Voltage rating: 1000 V AC across pair jacket
Temperature range: static: -40°C to +150°C | dynamic: -40°C to +150°C

Connectors
LeMo / REDEL: plug and socket, with orange strain-relief boot and black protective cap, 8-pin, Code C. 1000 V AC voltage rating – IP67 when mated.

Tests
Conductor-to-conductor – 2500 V AC – 5 min across pair jacket
5000 V AC – 5 min – according to EN 50264-2-1
Piece testing on assembled connector in accordance with measuring-device standard IEC/EN 61010-1 and VDE specifications in in-house ball bath (test facility released by VDE)
External touch-protection verification – 3000 V / 1 min AC

Configuration examples (excerpt)
Art.-No. T641-056-497 — connection cable length 1000 mm
Art.-No. T641-058-117 — connection cable length 3000 mm
Art.-No. T641-058-574 — connection cable length 5000 mm
Total and channel lengths customizable.

Technical specifications

• Connection cable: HV measuring cable
• Insulation: FEP (DIN 47100 1-8)
• Pair jacket: FEP, orange (RAL 2004)
• Inner jacket: PUR, blue (RAL 5024)
• Outer jacket: PUR
• Sheath colour: orange with green longitudinal stripes
• Stranding: optimally layered
• Outer diameter: approx. 7.4 mm
• Voltage rating: 1000 V AC across pair jacket
• Temperature range: -40°C to +150°C (static and dynamic)
• Connector: LeMo/REDEL 8-pin, Code C, IP67 when mated, 1000 V AC voltage rating
• Cable tests: conductor-to-conductor 2500 V AC (5 min) and 5000 V AC (5 min) per EN 50264-2-1
• Product tests: testing per IEC/EN 61010-1 and VDE; external touch-protection test 3000 V / 1 min AC
