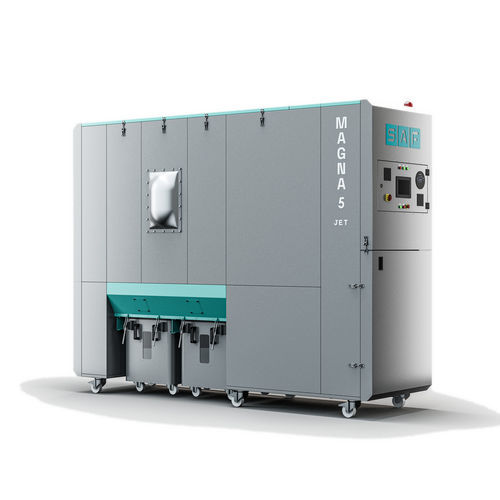

Cartridge dust collector MAGNA 5

pulse-jet backflowfor cutting machinesself-cleaning

Overview
MAGNA 5 is a mobile dust collector designed for continuous extraction of dry dust and powders. It delivers a nominal airflow of 5000 m³/h and uses a jet-pulse cartridge filter system for automatic cleaning.

Applications

• Local extraction in workshops and production lines (woodworking, metalworking, plastic processing)
• Dust collection from grinding, sanding, cutting and similar operations
• Temporary or relocatable installations requiring a self-contained unit

Technical data

• Order code: MAGNA 5
• Max. airflow: 5000 m³/h
• Motor power: 4 kW - 3 Ph
• Voltage: 400 V - 50 Hz
• Pressure @ max airflow: 2140 Pa
• Filter quantity: 24 pcs
• Filter sizes: Ø125 x 756 mm
• Filtration area: 30 m²
• Filter type: Cartridge filter
• Waste storage capacity: 380 L
• Vacuum diameter: Ø250 mm
• Filter cleaning: Jet pulse
• Unit dimensions (L x W x H): 3020 x 930 x 2415 mm
• Weight: 800 kg

Operation & maintenance

• Automatic jet-pulse cleaning reduces manual intervention
• Accessible hopper and filter housing for inspection and replacement
• Periodic checks recommended: electrical connections, seals and filter condition
