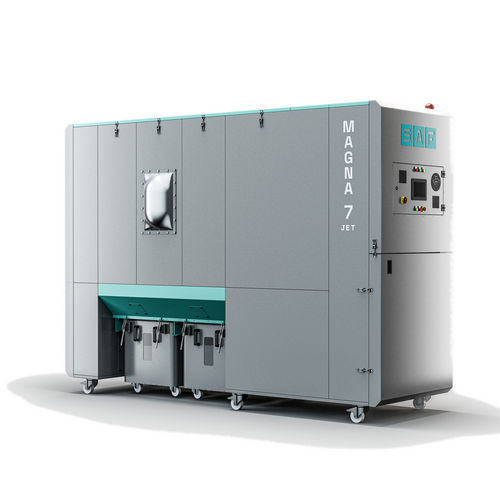

Cartridge dust collector MAGNA 7

pulse-jet backflowself-cleaningheavy-duty

Overview
MAGNA 7 provides continuous high-capacity dust extraction with 7,000 m³/h airflow and a jet-pulse cleaned cartridge filter system designed for heavy industrial use.

Key Features

• Jet pulse cartridge filter cleaning system for continuous operation
• Mobile design with integrated 380 L waste hopper for extended operation
• High airflow (7,000 m³/h) and 2,000 Pa at max flow for demanding extraction tasks

Technical Data

• ORDER CODE: MAGNA 7
• Max. Airflow: 7,000 m³/h
• Motor Power: 7.5 kW - 3 Ph
• Voltage: 400 V - 50 Hz
• Pressure @ Max Airflow: 2000 Pa
• Filter Quantity: 40 Pcs
• Filter Sizes: Q125x756 mm
• Filtration Area: 48 m²
• Filter Type: Cartridge Filter
• Filter Cleaning: Jet Pulse
• Waste Storage: 380 Liters
• Vacuum Diameter: Q300 mm
• Unit Sizes: 3380x1094x2415 mm
• Weight: 880 kg

Applications

• Continuous, high-capacity industrial dust collection
• Woodworking and metalworking environments requiring cartridge filtration and jet-pulse cleaning

Specifications

• ORDER CODE: MAGNA 7
• Max. Airflow: 7,000 m³/h
• Motor Power: 7.5 kW - 3 Ph
• Voltage: 400 V - 50 Hz
• Pressure @ Max Airflow: 2000 Pa
• Filter Quantity: 40 Pcs
• Filter Sizes: Q125x756 mm
• Filtration Area: 48 m²
• Filter Type: Cartridge Filter
• Filter Cleaning: Jet Pulse
• Waste Storage: 380 Liters
• Vacuum Diameter: Q300 mm
• Unit Sizes: 3380x1094x2415 mm
• Weight: 880 kg
