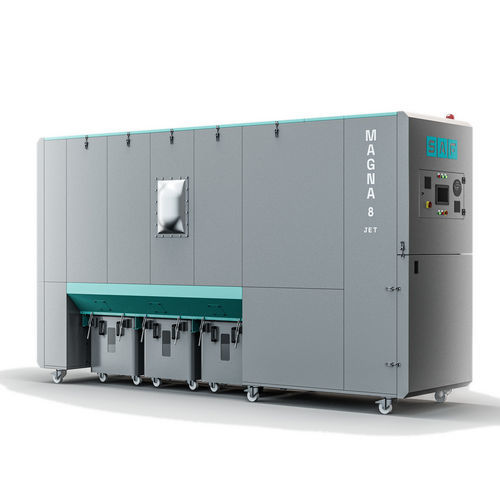

Cartridge dust collector MAGNA 8

pulse-jet backflowself-cleaningmobile

Product Overview
MAGNA 8 is a mobile dust collector designed for continuous extraction in industrial environments. It provides up to 8,000 m³/h airflow and uses a jet-pulse cleaned cartridge filter system with 60 cartridges and a total filtration area of 72 m². The unit incorporates an 11 kW three-phase motor and a 570 L waste hopper to support extended operation.

Technical Data
ORDER CODE: MAGNA 8
Max. Airflow: 8,000 m³/h
Motor Power: 11 kW - 3 Ph
Voltage: 400 V - 50 Hz
Pressure @ Max Airflow: 2000 Pa
Filter Quantity: 60 pcs
Filter Sizes: Q125 x 756 mm
Filtration Area: 72 m²
Filter Type: Cartridge Filter
Waste Storage: 570 Liters
Vacuum Diameter: Q355 mm
Filter Cleaning: Jet Pulse
Unit Sizes: 4230 x 1095 x 2415 mm
Weight: 1050 kg

Key Features & Typical Applications

• Continuous industrial dust extraction with 8,000 m³/h capacity
• Cartridge filter assembly (60 cartridges) cleaned by jet-pulse to reduce manual maintenance
• 11 kW three-phase motor; requires 400 V - 50 Hz electrical supply
• 570 L waste hopper for reduced emptying frequency
• Vacuum connection Q355 mm for integration with ducting or point-source extraction
• Mobile configuration for relocation within a facility; overall dimensions 4230 x 1095 x 2415 mm
