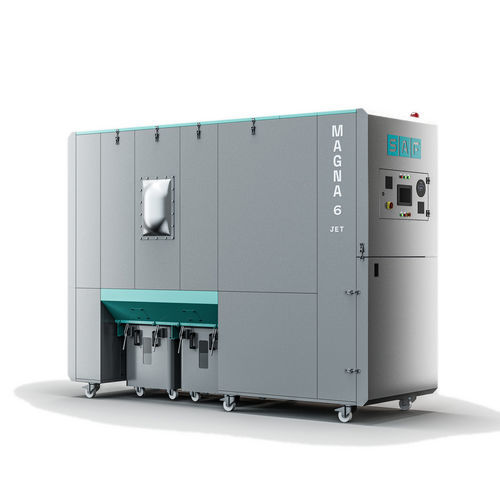

Cartridge dust collector MAGNA 6

pulse-jet backflowself-cleaningmobile

Overview
MAGNA 6 is a mobile industrial dust collector engineered for continuous extraction of airborne particulates in manufacturing and processing environments. It provides 6,000 m³/h airflow and a jet-pulse cleaned cartridge filter system to maintain filtration efficiency during prolonged operation. The unit incorporates a 380 L waste hopper on a mobile chassis for on-site repositioning.

Technical Table
ORDER CODE: MAGNA 6
Max. Airflow: 6,000 m³/h
Motor Power: 5.5 kW - 3 Ph
Voltage: 400 V - 50 Hz
Pressure @ Max Airflow: 2143 Pa
Filter Quantity: 30 Pcs
Filter Sizes: Q125x756 mm
Filtration Area: 36 m²
Filter Type: Cartridge Filter
Waste Storage: 380 Liters
Vacuum Diameter: Q280 mm
Filter Cleaning: Jet Pulse
Unit Sizes: 3040x1094x2415 mm
Weight: 860 kg

Features / technical specifications

• Order code: MAGNA 6
• Max. Airflow: 6,000 m³/h
• Motor Power: 5.5 kW - 3 Phase
• Voltage: 400 V - 50 Hz
• Pressure at Max Airflow: 2143 Pa
• Filter Quantity: 30 pieces
• Filter Sizes: Q125 x 756 mm
• Filtration Area: 36 m²
• Filter Type: Cartridge filter
• Filter Cleaning Method: Jet pulse (jet-cleaned cartridge filter system)
• Waste Storage Capacity: 380 liters
• Vacuum Diameter: Q280 mm
• Unit Dimensions (L x W x H): 3040 x 1094 x 2415 mm
• Weight: 860 kg
