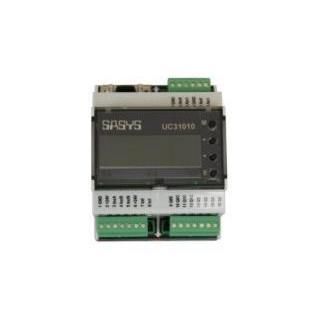

Pulse counter UC31010 CNT

tachometerfor flow metersdigital

Description
The UC31010 CNT counter module processes incremental input signals from encoders and flow meters. It regulates a setpoint speed or flow via an analog output (0–10V) and displays measured values and control deviation on the integrated display. Alarm outputs are available for fault signalling.

Key functions

• Processes incremental HTL/TTL signals
• Setpoint control of speed or flow via analog output (0–10V)
• Integrated display of measured values and regulation deviation
• Alarm and relay outputs for external signalling
• Modbus RTU communication

Technical data

• Supply voltage: 24 Vdc
• Digital inputs: 2
• Counter inputs (HTL/TTL) <20kHz: 3
• Digital outputs (<150mA): 2
• Relay outputs: 2 (30V/3A)
• Analog input/output: 2/2 (0–10V)
• Dimensions (L×W×H): 72 × 90 × 61 mm
• Interface: Modbus RTU
