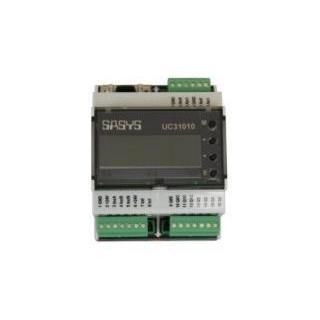

I/O regulator UC31010 RAT24 VRS-485for sensors
Add to favorites
Compare this product
Characteristics
- Other characteristics
- I/O, RS-485, 24 V
- Applications
- for automation, for sensors
Description
Description
The UC31010 RAT control module processes incremental input signals from two encoders or two flow counters. The preset ratio is precisely controlled via an analog output (0-10V). Measured values and control deviation are displayed on the screen with the corresponding units. Alarm outputs are available. The module is suitable for mixing two liquid media.
Technical data
Supply voltage: 24Vdc
Digital inputs: 2
Counter input (HTL/TTL) <20kHz: 3
Digital outputs (<150mA): 2
Relay outputs 30V/3A: 2
Analog input/output (0-10V): 2/2
Dimensions LxWxH (mm): 72 x 90 x 61
Interfaces: Modbus rtu
Characteristics / Technical specifications
The UC31010 RAT control module processes incremental input signals from two encoders or two flow counters. The preset ratio is precisely controlled via an analog output (0-10V). Measured values and control deviation are displayed on the screen with the corresponding units. Alarm outputs are available. The module is suitable for mixing two liquid media.
Technical data
Supply voltage: 24Vdc
Digital inputs: 2
Counter input (HTL/TTL) <20kHz: 3
Digital outputs (<150mA): 2
Relay outputs 30V/3A: 2
Analog input/output (0-10V): 2/2
Dimensions LxWxH (mm): 72 x 90 x 61
Interfaces: Modbus rtu
Characteristics / Technical specifications
- Supply voltage: 24Vdc
- Digital inputs: 2
- Counter input (HTL/TTL) <20kHz: 3
- Digital outputs (<150mA): 2
- Relay outputs 30V/3A: 2
- Analog input/output (0-10V): 2/2
- Dimensions LxWxH (mm): 72 x 90 x 61
- Interfaces: Modbus rtu
