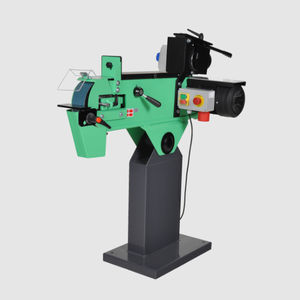

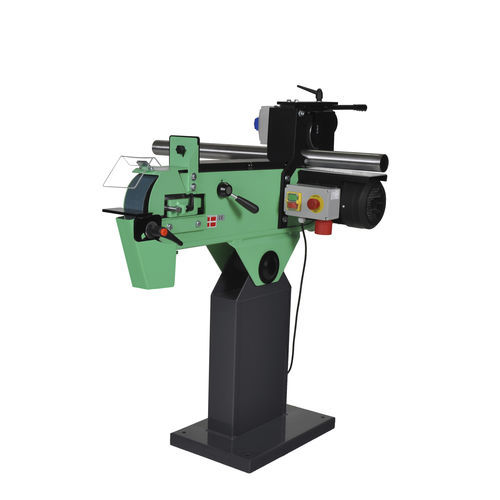

Centerless grinding machine TAS 75CGX

surfacefor tubesmanually-controlled

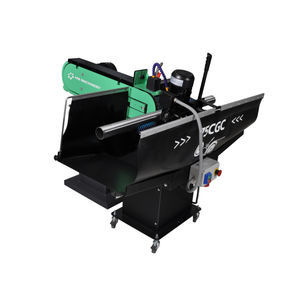

HM TAS 75CGX a combined belt and centerless grinder for all kind of pipe and tubes with built-in double exhaust system HM TAS 75CGX is supplied with a double built-in dust exhaust system and an attachment which can be mounted on all belt grinders with a 75x2000 mm belt and with a large grinding surface on top. The centerless grinding attachment is easy to operate and grinds/polishes all pipes and tubes with diameters of between 6 and 120 mm. HM TAS 75CGX centerless grinding and polishing machine is unique compared to other centerless grinders on the market because it remain a belt grinder even when the centerless grinding attachment is mounted. It is not necessary to take off the centerless attachment when using the belt grinder for normal grinding work. Both the contact wheel and the flat grinding surface on top are available for normal grinding and polishing even with the attachment on the machine. Support stands are available as extra accessory for long pipes and tubes. Product Specifications Voltage 3x400V-50 Hz Wheel size, Drive wheel (ø mm) 200x75x24 Wheel size, Contact wheel (ø mm) 200x75x20 Wheel size, Polishing wheel (ø mm) 50x150x25 Support roller (mm) 35x90x23 Gear NMRV 030 Pipe dimension (ø mm) 6-120 With exhaust 1 Length (mm) 1050 Width (mm) 700 Height (mm) 1150
