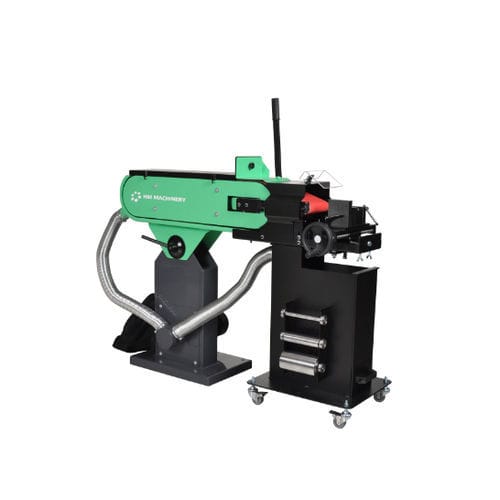

HM TAS 75RB/RBX are first and foremost, pipe notchers which grind pipes of all types: round, square, solid and with diameters of between 17 mm and 70 mm.
However, the RB and RBX models are more than just efficient pipe grinders.
They can be converted into a conventional belt grinder in just minutes when all pipe grinding tasks are finished.
Then the grinder can then be used for normal standard grinding tasks.
It is also possible to have a centerless attachment mounted on TAS 75RB/RBX which means 3 function in ONE !
HM TAS 75RB is without dust extraction and HM TAS 75CGX is complete with built-in double dust extraction.
Product Specifications
Rpm
2880
Voltage
3x400V 50Hz
Grinding plane (mm)
75x605
Grit , grinding belt
36
Pipe capacity (outer) (ø mm)
17-70
Grinding angles
0-60°
Exhaust (m³/h)
600
With exhaust
1
Speed Numbers - Motor
1
Length (mm)
1350
Width (mm)
720
Height (mm)
1020
