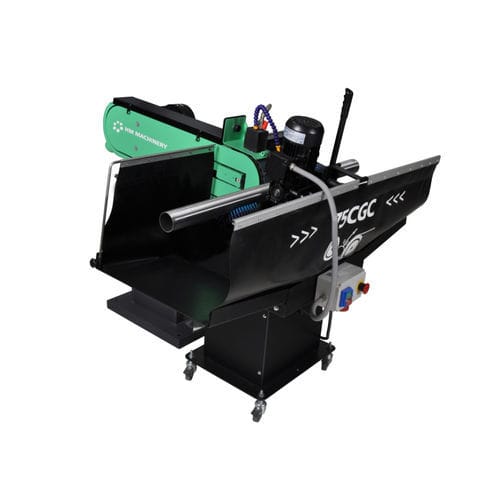

Centerless grinding machine TAS 75CGC

for tubes

HM TAS 75CGC Centerless grinding and polishing machine HM TAS 75CGC Centerless grinding and polishing machine is the perfect machine for polishing stainless pipes and tubes with its built-in coolant system. But grinds and polishes of course also all other pipe and tubes of steel! The centerless grinder is easy to operate and grinds/polishes all pipes and tubes with diameters between 6 to 120 mm. HM TAS 75CGC is supplied with a 2-speed motor where the high speed is used for cleaning the pipes with grinding belts in grit 60-80. Low speed is used for polishing and finishing, and it is possible to obtain a finish of RA 0,1 by use of our Start Package of grinding belt. Support stands are available as extra accessory for long pipes and tubes. Product Specifications Grinding table (mm) 605 Number of spindle speeds 1 Wheel size, Drive wheel (ø mm) 200x75x24 Wheel size, Contact wheel (ø mm) 200x75x20 Grinder Belt (mm) 75x2000 Wheel size, Polishing wheel (ø mm) 50x150x25 Gear NMRV030 Pipe dimension (ø mm) 6-120 Motor Centreless (kW) 0.3 Without exhaust 1 Length (mm) 1300 Width (mm) 1200 Height (mm) 950
