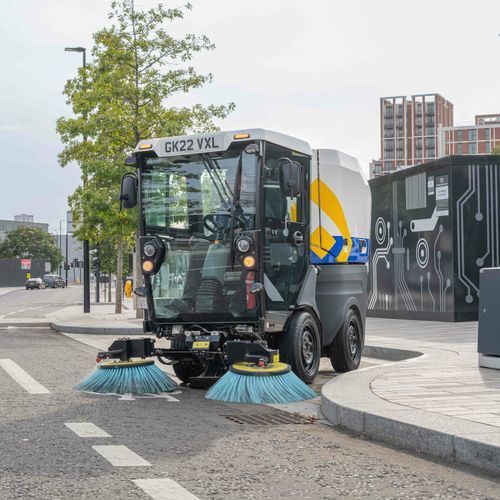

Street mechanical sweeper RAVO R1
gasoline enginediesel enginestreet

Street mechanical sweeper - RAVO R1 - Scarab Sweepers - gasoline engine / diesel engine / street
Street mechanical sweeper - RAVO R1 - Scarab Sweepers - gasoline engine / diesel engine / street
Street mechanical sweeper - RAVO R1 - Scarab Sweepers - gasoline engine / diesel engine / street - image - 2
Street mechanical sweeper - RAVO R1 - Scarab Sweepers - gasoline engine / diesel engine / street - image - 3
Street mechanical sweeper - RAVO R1 - Scarab Sweepers - gasoline engine / diesel engine / street - image - 4
Street mechanical sweeper - RAVO R1 - Scarab Sweepers - gasoline engine / diesel engine / street - image - 5
Street mechanical sweeper - RAVO R1 - Scarab Sweepers - gasoline engine / diesel engine / street - image - 6
Street mechanical sweeper - RAVO R1 - Scarab Sweepers - gasoline engine / diesel engine / street - image - 7
Add to favorites
Compare this product

Characteristics

Type
street
Motor type
diesel engine, gasoline engine
Interior/exterior use
street, indoor
Collected material
waste, dust
Other characteristics
compact, with water recycler, eco-sustainable, water-saving
Working width

Max.: 1,800 mm
(71 in)

Min.: 1,380 mm
(54 in)

Waste container volume

0.7 m³
(24.72 ft³)

Moving speed

Max.: 24 km/h
(14.9 mph)

Min.: 0 km/h
(0 mph)

Weight

2,400 kg
(5,291 lb)

Description

Overview
Built to operate effectively in dense urban environments, the RAVO R1 is a sub-compact street sweeper combining high manoeuvrability with industrial-grade cleaning performance. Its compact dimensions and articulated cabin enable access to confined areas and complex street geometries.

Key features
  • Automatic brush and water start/stop system (standard)
  • Dedicated sweeping chassis with robust stainless steel hopper (0.7 m³)
  • Dynamic braking system for safe deceleration
  • Four-wheel drive for superior traction and climbing capability
  • Oscillating suspension on each wheel for stability on uneven surfaces
  • Wide range of optional accessories for municipal and industrial tasks

Reach & operator experience
The articulated cabin and compact wheelbase provide a minimal inner turning radius (735 cm), facilitating work in tight streets and pedestrian areas. The cabin layout prioritises operator visibility, comfort and intuitive access to controls.

Environment & manufacturing
Integrated water recirculation reduces fresh water consumption. Low particulate emissions — rated 4 stars in the EUnited PM2.5/10 test. Manufactured under ISO 9001, ISO 14001 and ISO 45001 standards with a focus on recyclability at end of life.

Intuitive control system
The on-board electronics simplify fleet management and daily operation:
  • Real-time monitoring of active functions
  • Operational log book (hours, distances, average consumption)
  • Integrated diagnostic assistance
  • USB export of operational data
  • Built-in PDF reader for manuals and documents

Driving modes
Three preset modes: Standard, EcoMode and BoostMode. EcoMode can reduce fuel consumption by up to 50%, lower noise and extend component life.

Technical specifications
  • GVW: 2.4 tonne
  • Top speed: 24 km/h (15 mph)
  • Sweeping speed: 0–7 km/h (0–4 mph)
  • Hopper capacity: 0.7 m³
  • Water tank: 140 L
  • Engine options: Kubota V1505-E4B / Kubota G1605-E3
  • Sweeping width: 1,380–1,800 mm
  • Inner turning radius: 735 cm
  • Drive: Four-wheel drive
  • Suspension: Oscillating suspension on each wheel
