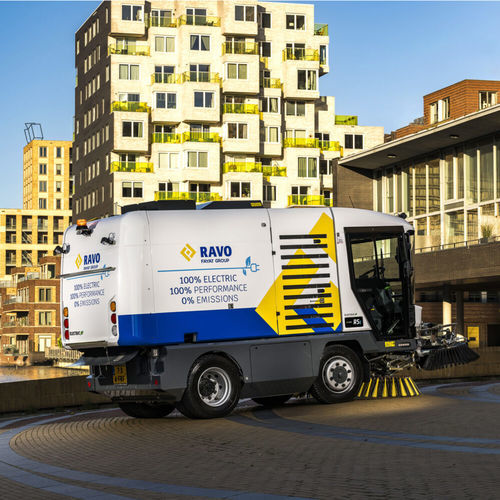

Ride-on sweeper RAVO R5e

streetelectricbattery-powered

Overview
The first and still the best. The RAVO R5e is an electric sweeping pioneer. With all-electric performance and exceptional maneuverability, the R5e is suited to a wide range of urban and municipal environments.

Key features

• Optimized electric performance: Battery Management System optimises energy use to deliver full-shift autonomy.
• Preferred battery: RAVO's Lithium Iron Phosphate (LiFePO4) battery selected for safety and long lifecycle.
• Warranty: Battery warranty is 3000 cycles or 5 years.

A reliable power source

• Battery type: Lithium iron phosphate (LiFePO4) for high safety and long service life.
• Safety: Equipped with high-quality cells and industry-leading battery safety technology.
• Constant power: Stable voltage during operation to maintain consistent available power for sweeping tasks.

Flexible charging capabilities
The RAVO R5e offers multiple charging options. Standard Type 2 (IEC 62196-2) connector with an internal charger up to 22 kW (full charge in under 4.5 hours). Optional CCS Combo 2 (IEC 62196-3) external fast charging up to 50 kW for a full charge in about 2 hours.

Unrivalled benefits

• Regenerative braking: Recovers energy during deceleration; the electric motor recharges the battery to increase efficiency.
• Quiet operation: Low external noise (approx. 93 dB outside cabin) and low internal cabin noise (max ~61 dB), enabling early-morning and late-night shifts.
• Driving comfort: High-torque electric motor provides smooth, responsive driving and a quiet cab for operator comfort.
• Zero local emissions: No diesel or petrol engine; no tailpipe emissions during operation.
• Low maintenance: Minimal moving parts reduce maintenance requirements and operating costs.

Vehicle specification
Size: 11.4 tonne GVW
Sweeping speed: 0–25 mph / 0–40 kph
Hopper capacity: 5 cubic metres
Water tank: 600 litres
Battery type: LiFePO4
Battery capacity: 100 kWh / 480 V
Charging power: 22 kW (internal) / 50 kW (external fast charge)
Sweep width: 2200–2500 mm

Technical specifications

• Model name: RAVO R5e
• GVW: 11.4 tonne
• Sweeping speed: 0–25 mph / 0–40 kph
• Hopper capacity: 5 m³
• Water tank capacity: 600 litres
• Battery: LiFePO4, 100 kWh / 480 V
• Charging options: Type 2 (IEC 62196-2) internal charger up to 22 kW; CCS Combo 2 (IEC 62196-3) external fast charging up to 50 kW
• Battery warranty: 3000 cycles or 5 years
• Sweep width: 2200–2500 mm
• Noise levels: approx. 93 dB outside; max 61 dB inside cabin
