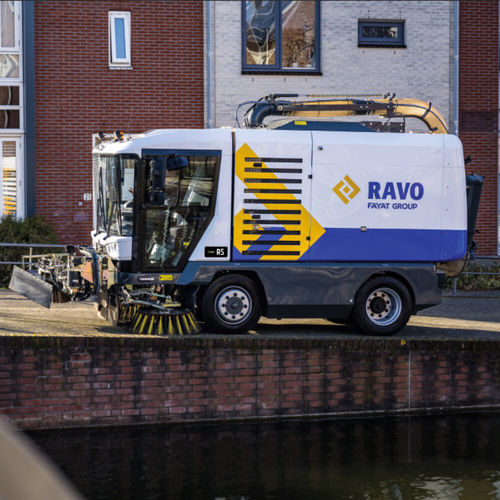

Ride-on mechanical sweeper RAVO R5

streetdieselcombustion engine

Overview
The RAVO R5 is a maxi-compact street sweeper engineered for urban and industrial cleaning tasks that require high payload and manoeuvrability. It combines a 5 m³ hopper and a 11.4 tonne GVW chassis to deliver efficient debris collection with straightforward operation and serviceability.

Key benefits

• Industry-best compaction rate. Optimise payload utilisation with high compaction and a large hopper capacity.
• Automatic ride height/self-leveling system. Ensures constant brush pressure for consistent sweeping performance and reduced brush wear.
• Robust, maintenance-friendly brush system. Proven RAVO brush design with minimal greasing points for lower upkeep.
• 72 km/h transit speed. Fast road transit between sites reduces downtime.
• Best-in-class turning circle. Exceptional manoeuvrability for tight streets and dead ends.

Vehicle specification
Size: 11.4 tonne GVW
Sweeping speed: 0-25 mph / 0-40 kph
Hopper capacity: 5 cubic metres
Water tank: 600 litres
Engine: Iveco Euro 6/D
Typical payload: 4650 - 5260 kg
Sweep width: 2200 - 2400 mm
Fuel capacity: 120 litres

An ideal working environment
The R5 cabin is spacious, ergonomically arranged and designed with operator input. Low floor height (85 cm) enables easy access. Adjustable dashboard, armrests and steering wheel plus a gently tilted panoramic windscreen provide excellent visibility and operator comfort.

Easy to maintain
The R5 includes design features that improve reliability and reduce maintenance time and cost:

• A unique, maintenance-friendly RAVO brush system.
• A simple and effective fan cleaning system.
• Large service hatches for easy hopper access.
• Centrally combined greasing points.
• Quick-change brushes.

Options
Water Options

• Water recycling - integrated recycling to minimise fresh water use and reduce particulate emissions.
• Swash system - combined sweeping and washing capability; configurable pressure, tanks and pumps; compatible with disinfectants.
• High-pressure water pump - for cleaning inside hopper, brush and suction components or street furniture.

Suction Options

• Hydraulic wanderhose - ideal for leaves, gulleys and waste bin emptying.
• Hydraulic suction tube shutter - automatically closes/opens the suction tube to prevent backflow and focus suction on the wanderhose.

Brush Options

• Third brush - increases sweeping range for heavy-duty collection.
• Third brush weedcutter - removes weeds; optional quick-release for fast installation/removal.
• Brush angle adjustment - adjustable for gutters and hard-to-reach areas.
• Independent brush lifting - left and right brushes can be lifted separately to reduce wear.

Control Options

• Cruise control - set sweeping speed for consistent operation.
• 360° camera - improves situational awareness and safety around the vehicle.
• Container dump - direct emptying into containers; dumping height 1550 mm.

Endurance Options

• Silent package - reduces noise levels for quieter operation (tested by TÜV Germany).
• Heavy duty package - coated suction system and optional heavy-duty fan for increased durability in demanding environments.

Downloads
Product brochure available (PDF): RAVO R5, R5e - Product Brochure (English).

Technical specifications

• Model: RAVO R5
• GVW / Size: 11.4 tonne GVW
• Sweeping speed: 0-25 mph / 0-40 kph (transit speed up to 72 km/h)
• Hopper capacity: 5 cubic metres
• Water tank capacity: 600 litres
• Engine: Iveco Euro 6/D
• Typical payload: 4650 - 5260 kg
• Sweep width: 2200 - 2400 mm
• Fuel capacity: 120 litres
• Key options: third brush, wanderhose, container dump, 360° camera, water recycling, swash system, high-pressure water pump, hydraulic suction tube shutter, brush angle adjustment, independent brush lifting, cruise control, silent package, heavy duty package
